Step Lines
| + | [* black] SMALL GEAR ASSEMBLY |
|---|---|

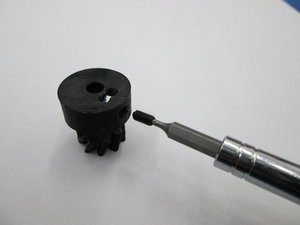

| + | [* black] Install the M3 nut into the bottom of the small herringbone gear. |
| + | [* black] Then install the M3 x 6mm set screw through the side of the small gear and into the nut. |
| + | [* black] Be sure the M3 x 6mm set screw does not protrude into the hole through the small gear. |
Image 1
No previous image
Added
Image 2
No previous image
Added
