Introduction

Sketchup ModelNote: Model doesn't show the proper bolts for the bearings.Additional Materials Required:* V-Groove Bearings (2)* 1/2"x 2.5" Bolts (2)* M12x55mm Bolts (4)* M12 Nuts (4)* Washer, Lock 12mm (8)

    • Grind off the top of the 12mm bolts so that the head is 1/4” thick or less.

    • This is so that the bolts will not be touching the drawer as it slides in and out.

    Edit

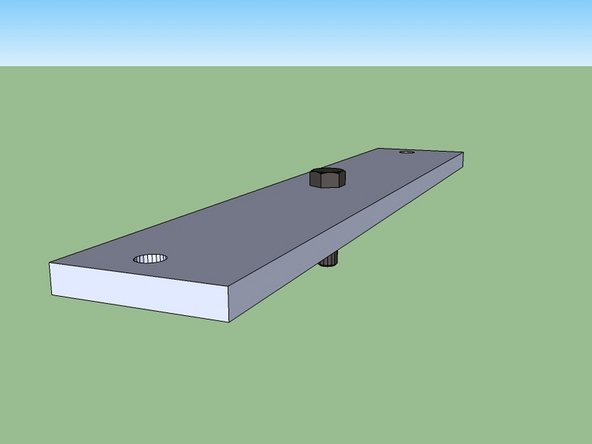

  2. Punch the holes in the main plates and the spacer plates. Weld the 1/2" bolts in the center hole, from the bolt head side. Weld the 1/2" bolts in the center hole, from the bolt head side.

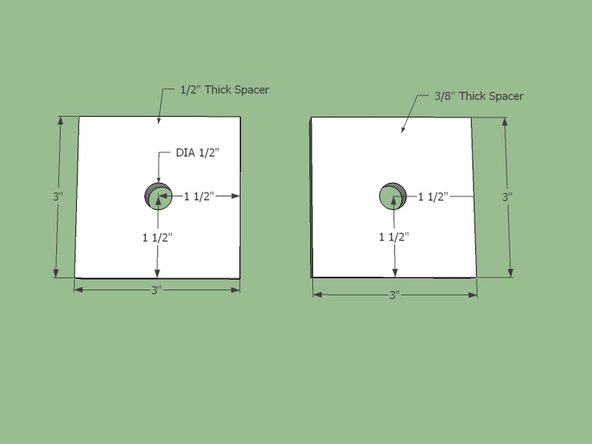

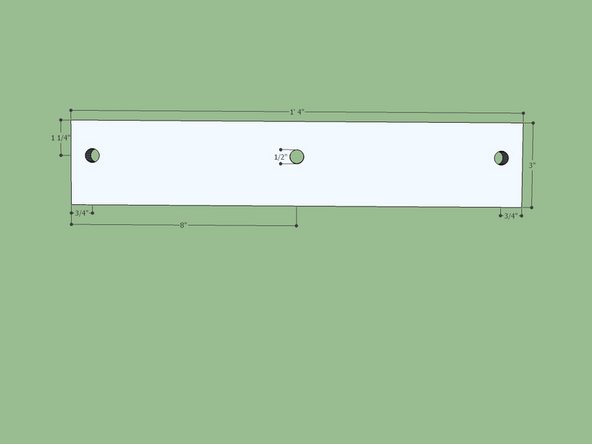

    • Punch the holes in the main plates and the spacer plates.

    • Weld the 1/2" bolts in the center hole, from the bolt head side.

    Edit

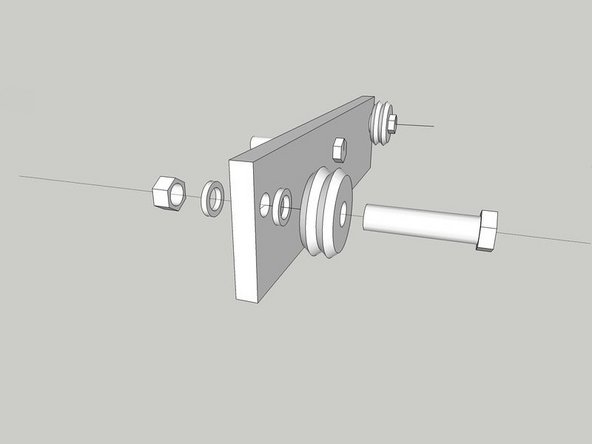

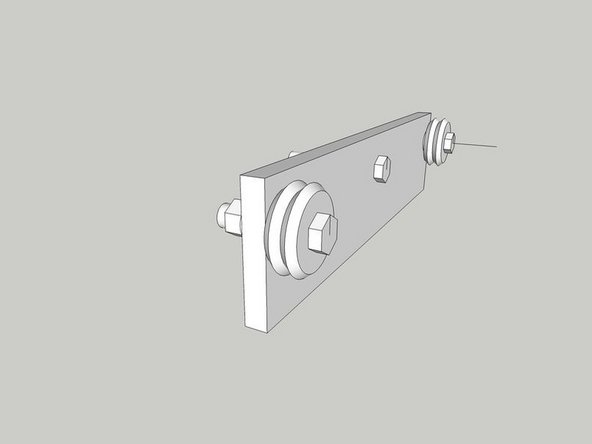

  3. Assemble the bearings to the plate as shown, with lock washers on each side of the main plate. Assemble the bearings to the plate as shown, with lock washers on each side of the main plate.

    • Assemble the bearings to the plate as shown, with lock washers on each side of the main plate.

    Edit
Finish Line
