  1. This is what the four modules will look like when they come together.

    • This is what the four modules will look like when they come together.

    Edit

  2. The first image shows the north-west corner.

    • The first image shows the north-west corner.

    • You can see that the plywood on the west module extends past by several inches - this is how the corner is tied together.

    Edit

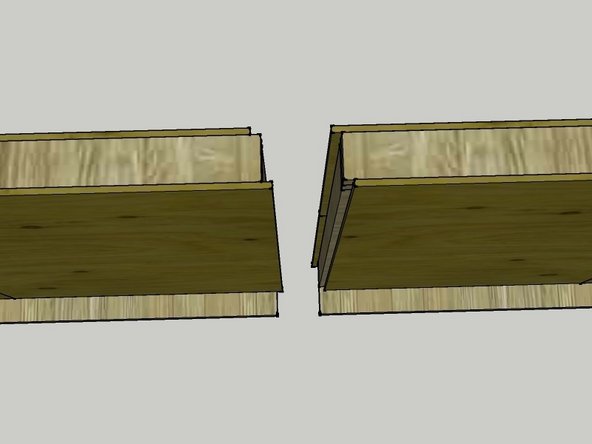

  3. This image shows how the two north modules come together. The plywood on the interior and exterior is made so that the two modules should slide together very easily.

    • This image shows how the two north modules come together. The plywood on the interior and exterior is made so that the two modules should slide together very easily.

    Edit

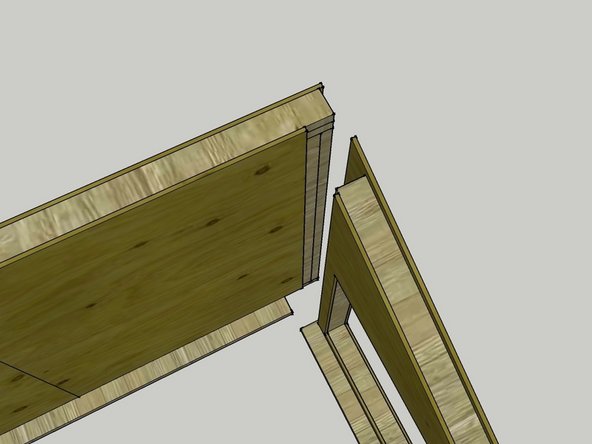

  4. This image shows the north-east corner. It is similar to the northwest corner - the plywood that extends on the east module is used to tie the two modules together.

    • This image shows the north-east corner. It is similar to the northwest corner - the plywood that extends on the east module is used to tie the two modules together.

    Edit
