Introduction

This guide first inventories all the parts and shows photos and other infomation in the Steps area.

  1. Lasersaur drive board PCB

    • Lasersaur drive board PCB

    • NORTD LABS PARTS - STEPS 1-8

    Edit

  2. Beagle Bone black preloaded with Ubuntu and laser sore app. The board later gets a dongle for Wi-Fi USB. Board is either bought from Nortd Labs - or instructions for uploading code are at http://www.lasersaur.com/manual/bbb_setu...

    • Beagle Bone black preloaded with Ubuntu and laser sore app. The board later gets a dongle for Wi-Fi USB. Board is either bought from Nortd Labs - or instructions for uploading code are at http://www.lasersaur.com/manual/bbb_setu...

    Edit

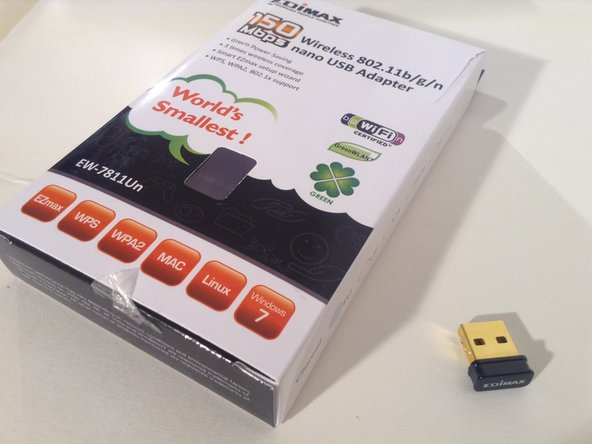

  3. Wireless dongle for Beagle Bone

    • Wireless dongle for Beagle Bone

    Edit

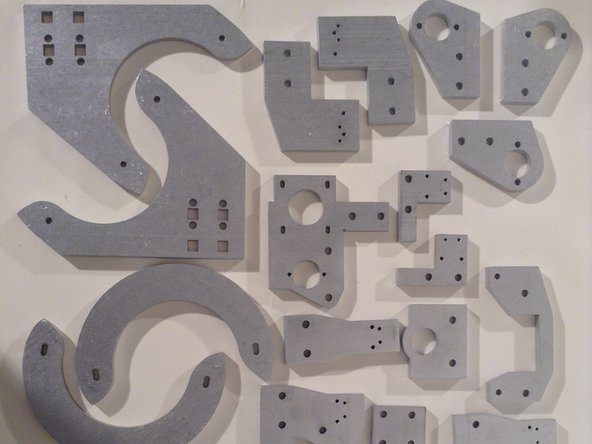

  4. Mounts for various parts. You can see job file (DXF) - MechParts v14.01 (dxf) at http://www.lasersaur.com/manual/rev14.01
    Edit

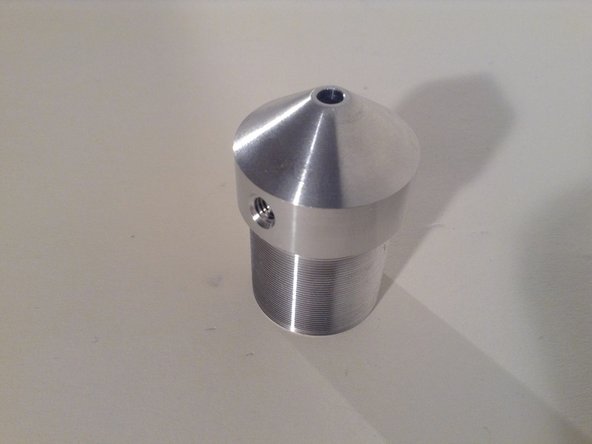

  5. Gas nozzle - threaded so optics components can be put on it. Thread is defined 1.035"-40, 23 mm deep on the nozzle. Nozzle is found in CAD - FreeCAD has it. See Thor Labs for Lens Tube for corresponding threads.

    • Gas nozzle - threaded so optics components can be put on it. Thread is defined 1.035"-40, 23 mm deep on the nozzle. Nozzle is found in CAD - FreeCAD has it. See Thor Labs for Lens Tube for corresponding threads.

    Edit

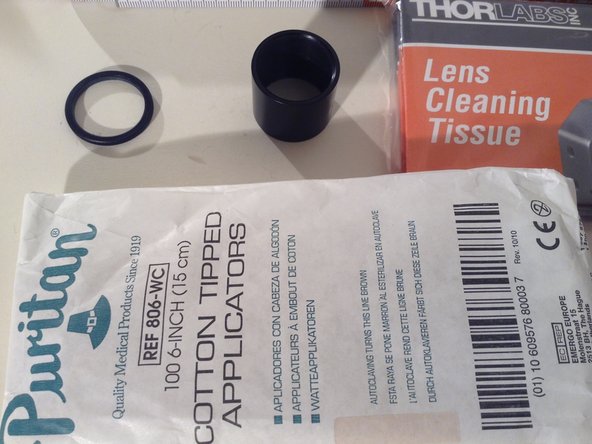

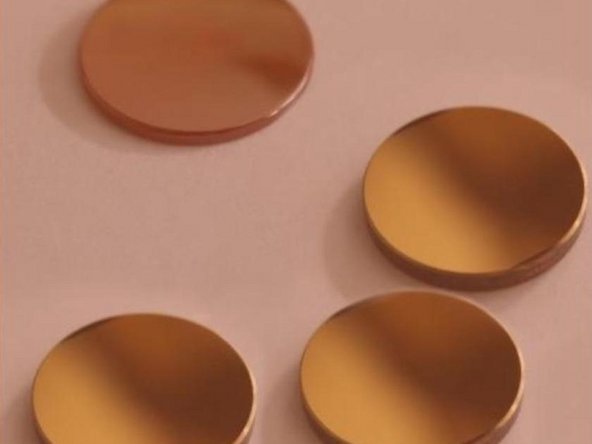

  6. Lens - set of 4 - not opened so they are not contaminated. See picture from website - http://store.lasersaur.com/index.php?rou... .
    Edit

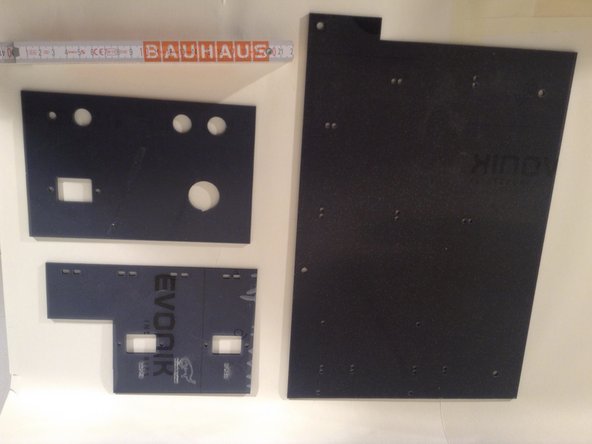

  7. Mouns - acrylic, for controller and other electronics. About $5/sf for material. Cut with Lasersaur itself.

    • Mouns - acrylic, for controller and other electronics. About $5/sf for material. Cut with Lasersaur itself.

    Edit

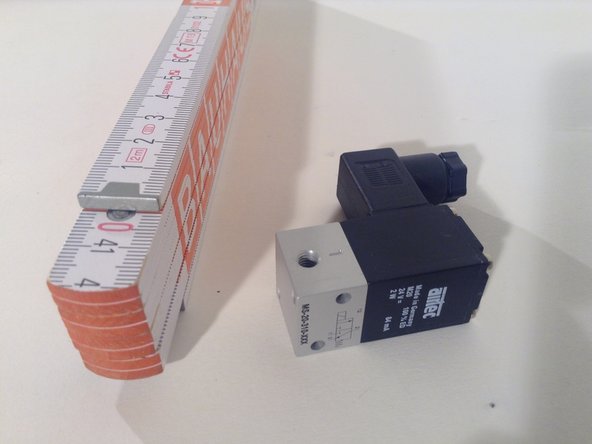

  8. Gas solenoid - about $20 in the USA - The E-valve can also be sourced from Automation Direct and Landefeld - linked by the 14.01 BOM

    • Gas solenoid - about $20 in the USA - The E-valve can also be sourced from Automation Direct and Landefeld - linked by the 14.01 BOM

    Edit

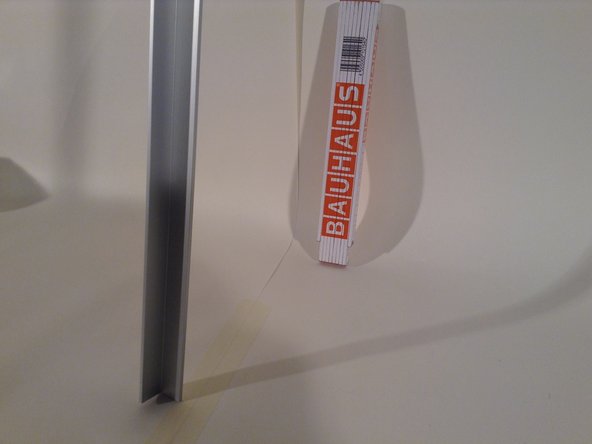

  9. Aluminum bracket extrusion. 1410 at end of part number refers to 1410 mm.

    • Aluminum bracket extrusion. 1410 at end of part number refers to 1410 mm.

    • MISUMI PARTS STEPS 9 - 128

    Edit

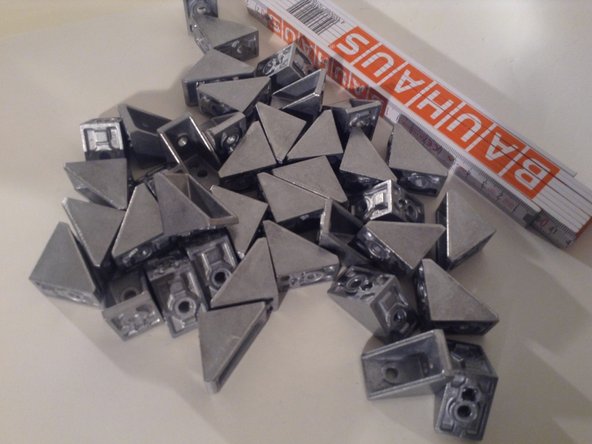

  10. Angle bracket, single. 39 of these.

    • Angle bracket, single. 39 of these.

    Edit

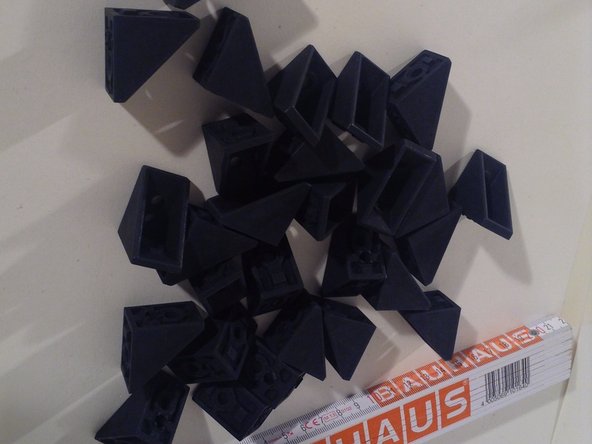

  11. Angle bracket, single, black. 28 of these.

    • Angle bracket, single, black. 28 of these.

    Edit

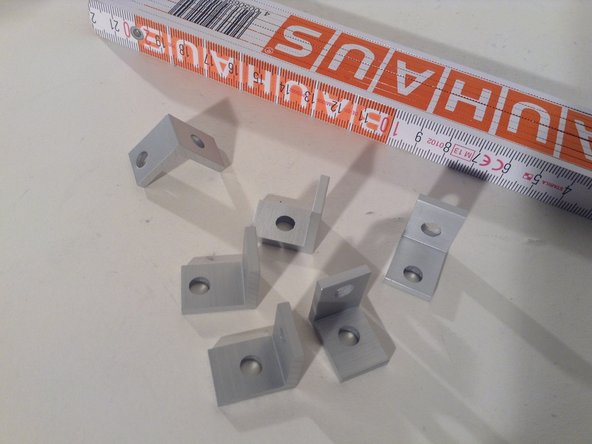

  12. Angle bracket, single, non-gusseted, 6 of these

    • Angle bracket, single, non-gusseted, 6 of these

    Edit

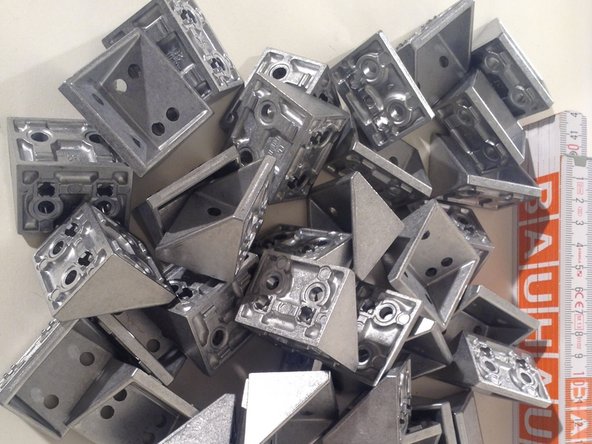

  13. Angle bracket, double, gusseted, 38 of these.

    • Angle bracket, double, gusseted, 38 of these.

    Edit

    • Angle bracket, double, non-gusseted, 7 of these

    Edit

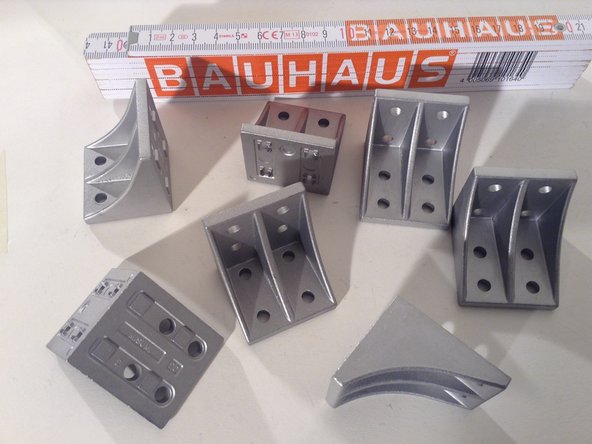

  15. Angle bracket, double, gusseted, 7 of these.

    • Angle bracket, double, gusseted, 7 of these.

    Edit

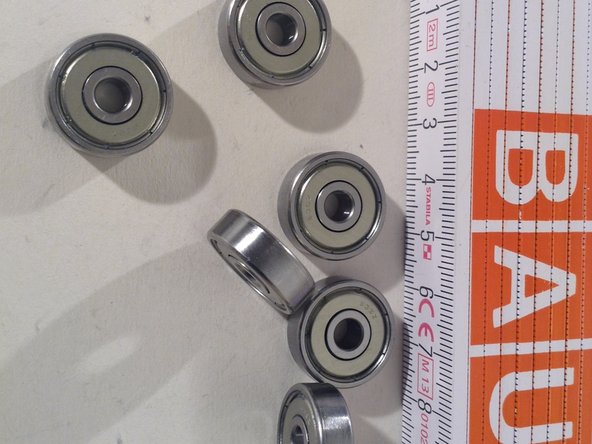

  16. [6] ball bearings, 5x19x6

    • [6] ball bearings, 5x19x6

    Edit

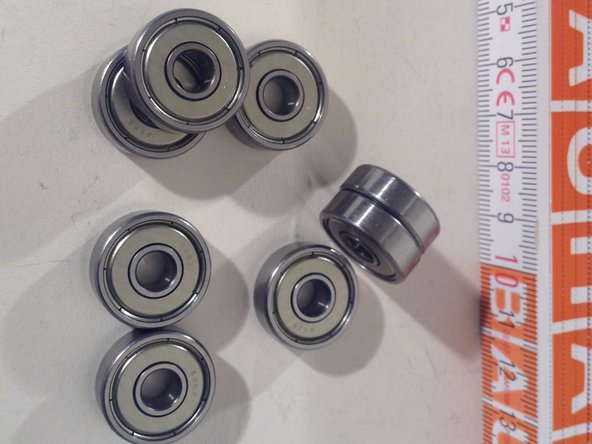

  17. [8] ball bearing, 6x19x6

    • [8] ball bearing, 6x19x6

    Edit

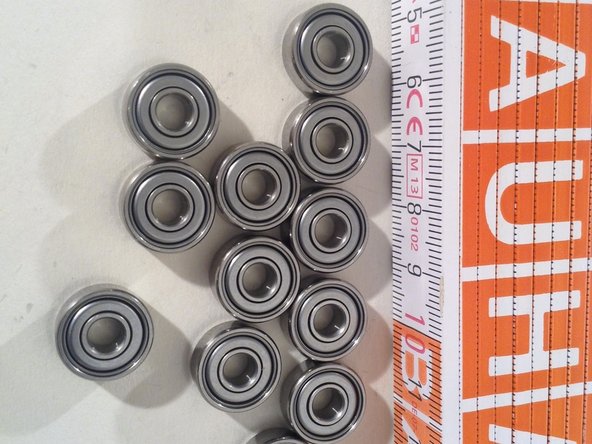

  18. [12] ball bearing, 5x14x5

    • [12] ball bearing, 5x14x5

    Edit

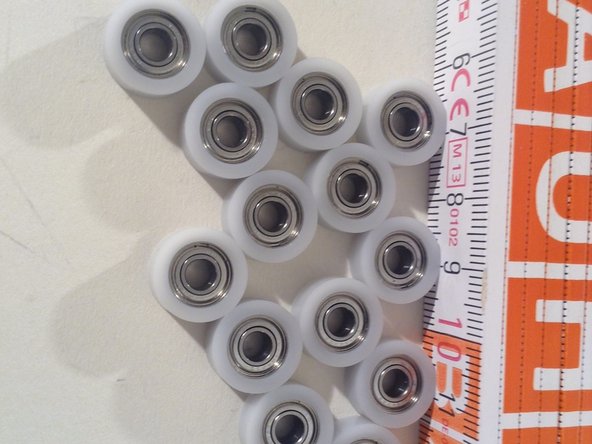

  19. [15] roller bearing, 4x13x5

    • [15] roller bearing, 4x13x5

    Edit

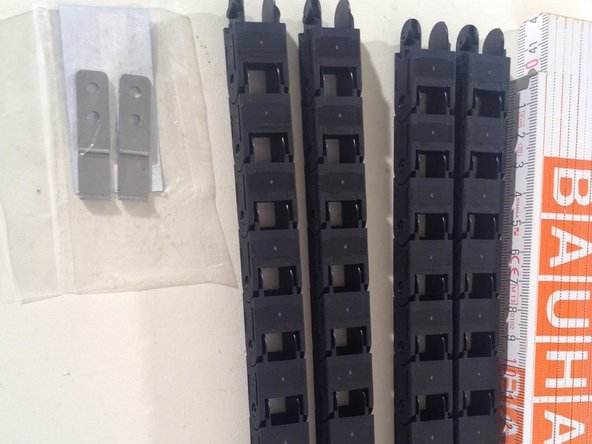

  20. [2] cable carrier, 20 links

    • [2] cable carrier, 20 links

    Edit

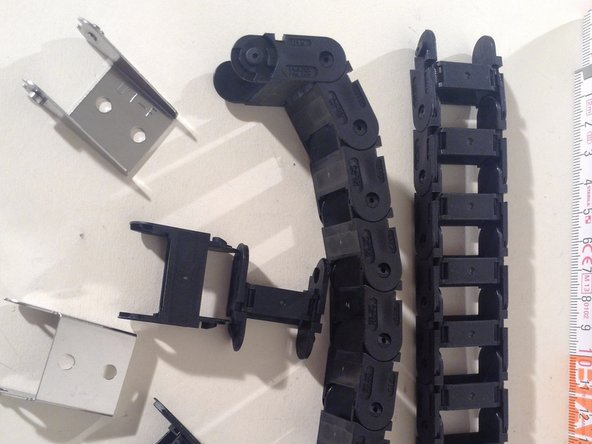

  21. [1] cable carrier, 23 links

    • [1] cable carrier, 23 links

    Edit

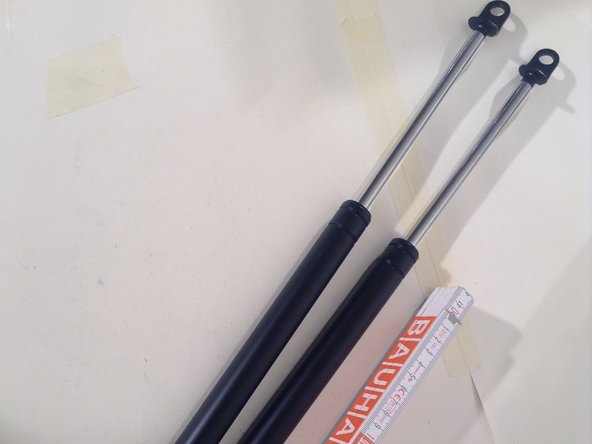

  22. [2] gas spring 1:01

    • [2] gas spring 1:01

    Edit

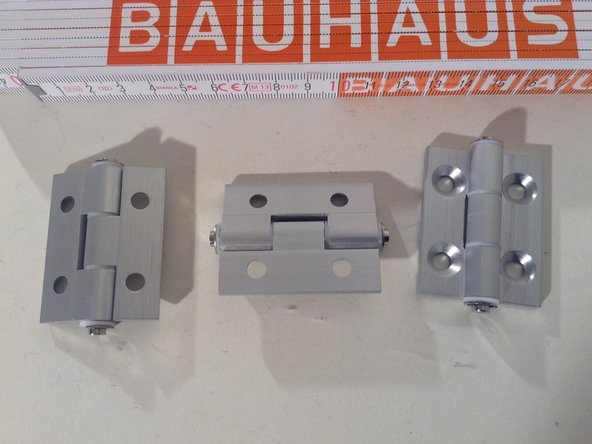

  23. [3] hinges

    • [3] hinges

    Edit

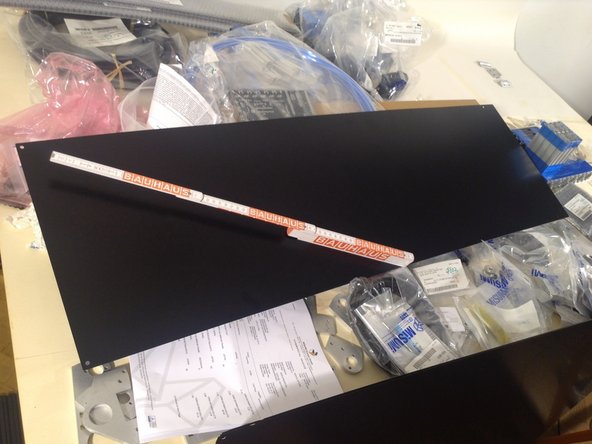

  24. [1] powder-coated metal sheet 1166x356x0.8mm. Note that Misumi is sophisticated enough in its web interface that it gives you the hole pattern for the sheets included in the part number!

    • [1] powder-coated metal sheet 1166x356x0.8mm. Note that Misumi is sophisticated enough in its web interface that it gives you the hole pattern for the sheets included in the part number!

    • For CNC torch cutting in the future, use the FreeCAD model to generate full hole pattern to cut. The existing sheets, since they are a part order for replicability, do not include all the holes. 1.24

    Edit

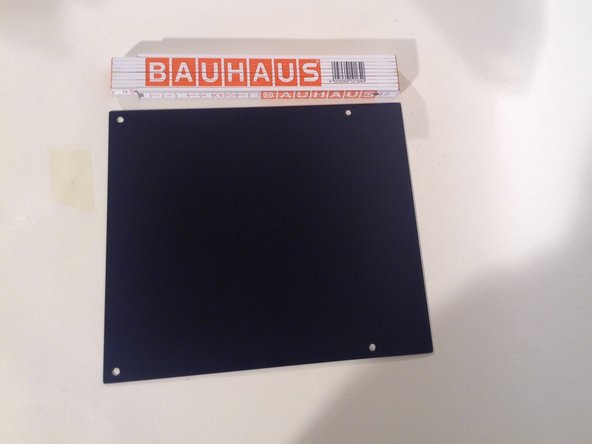

  25. [2] powder-coated metal sheet 1166x847x0.8mm (put in Gallery 1.29)

    • [2] powder-coated metal sheet 1166x847x0.8mm (put in Gallery 1.29)

    Edit

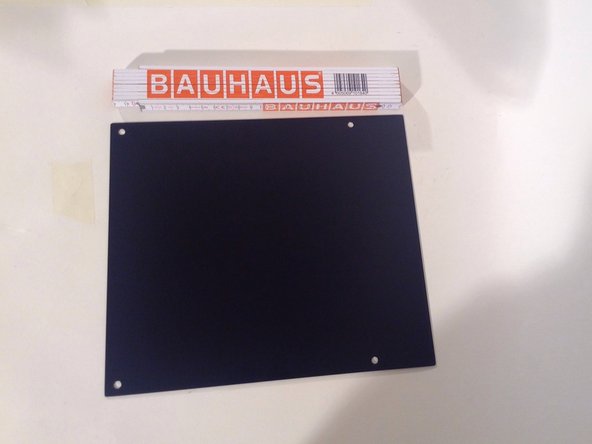

  26. [1] powder-coated metal sheet 247x216x0.8mm 1.34

    • [1] powder-coated metal sheet 247x216x0.8mm 1.34

    Edit

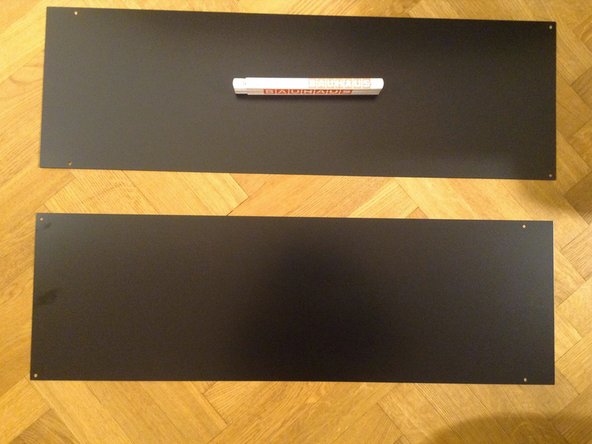

  27. [2] more - metal sheet 847x200x0.8mm

    • [2] more - metal sheet 847x200x0.8mm

    Edit

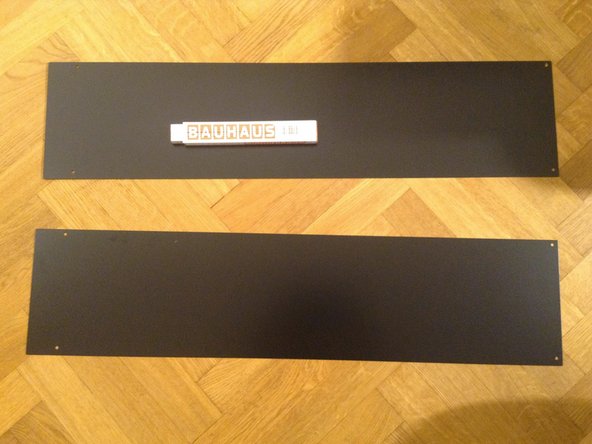

  28. 2] metal sheet 847x268x0.8mm 2.02

    • 2] metal sheet 847x268x0.8mm 2.02

    Edit

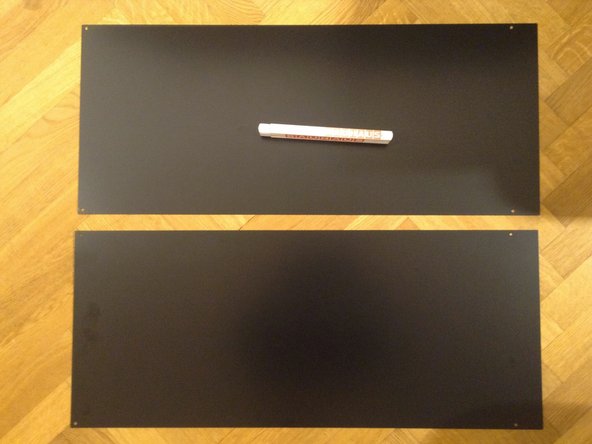

  29. [2] metal sheet 847x356x0.8mm 2.05

    • [2] metal sheet 847x356x0.8mm 2.05

    Edit

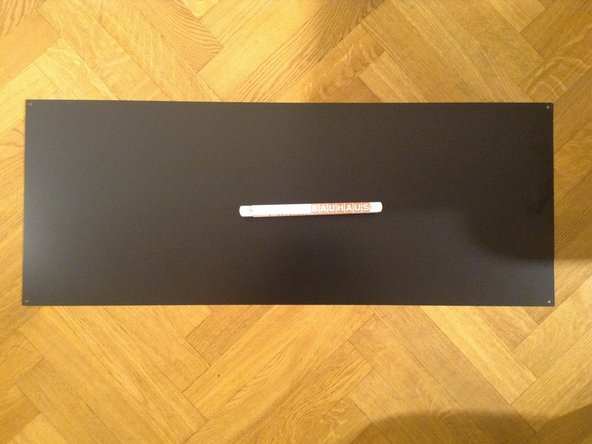

  30. [1] metal sheet 917x356x0.8mm 2.07

    • [1] metal sheet 917x356x0.8mm 2.07

    Edit

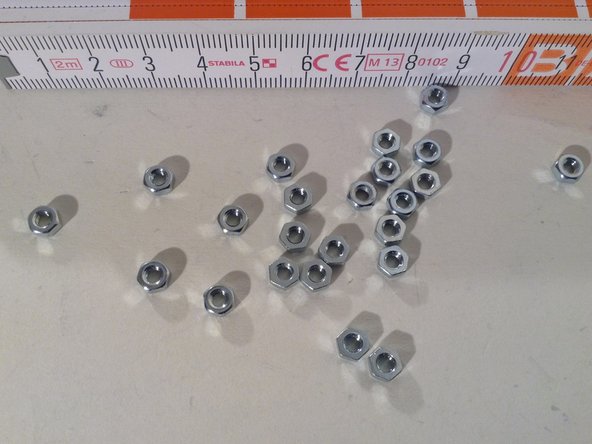

  31. [23] nut DIN934-like, M3, (put in Gallery) 2.11

    • [23] nut DIN934-like, M3, (put in Gallery) 2.11

    Edit

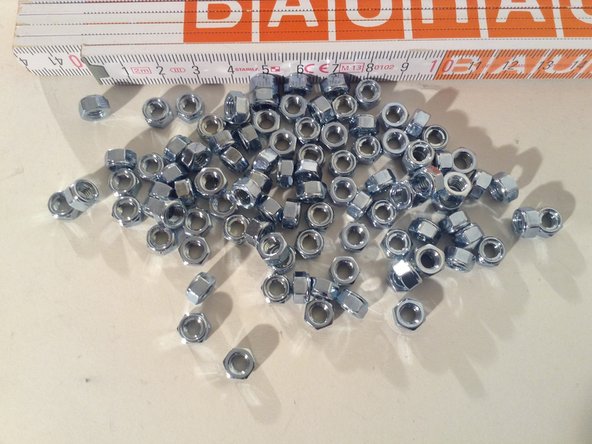

  32. [100] m5 locknuts (put in Gallery - now the album tagging is no longer working in the Trovebox App) 2.16

    • [100] m5 locknuts (put in Gallery - now the album tagging is no longer working in the Trovebox App) 2.16

    Edit

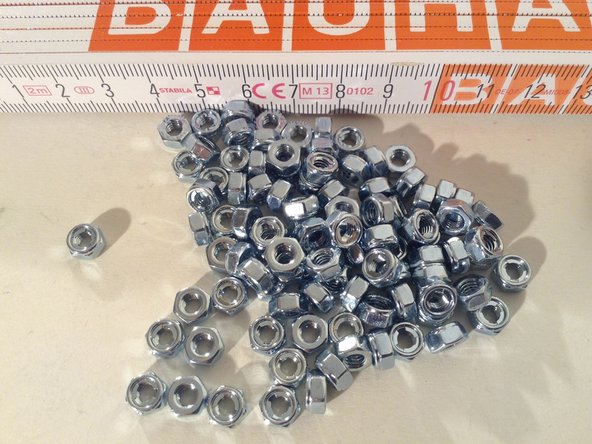

  33. [100] m4 locknuts 2.26

    • [100] m4 locknuts 2.26

    Edit

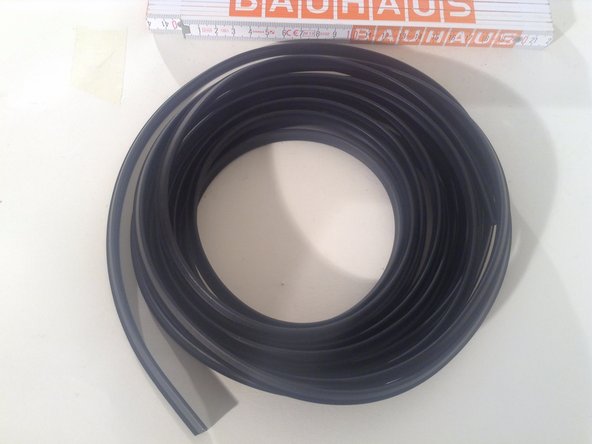

  34. panel rubber seal 6m 2.39

    • panel rubber seal 6m 2.39

    Edit

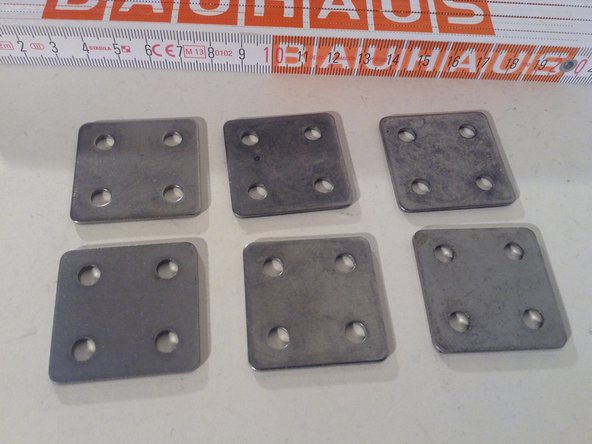

  35. planar bracket

    • planar bracket

    Edit

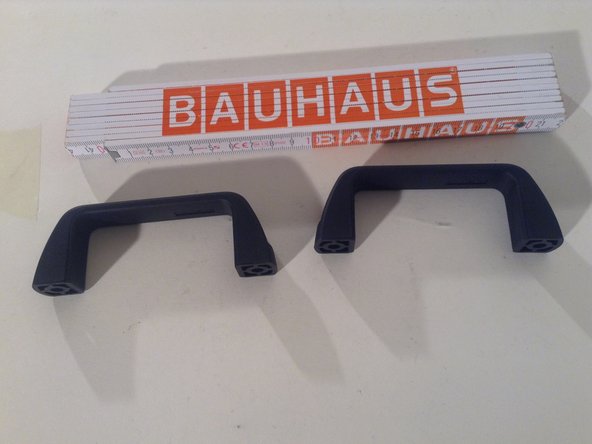

  36. plastic handles 2.53

    • plastic handles 2.53

    Edit

  37. [2] polycarbonate sheet 170x130x3mm 3.04

    • [2] polycarbonate sheet 170x130x3mm 3.04

    Edit

  38. [2] polycarbonate sheet 600x130x3mm 3.04

    • [2] polycarbonate sheet 600x130x3mm 3.04

    Edit

  39. [2] polycarbonate sheet 800x110x3mm 3.04

    • [2] polycarbonate sheet 800x110x3mm 3.04

    Edit

  40. [2] polycarbonate sheet 807x60x3mm 3.04

    • [2] polycarbonate sheet 807x60x3mm 3.04

    Edit

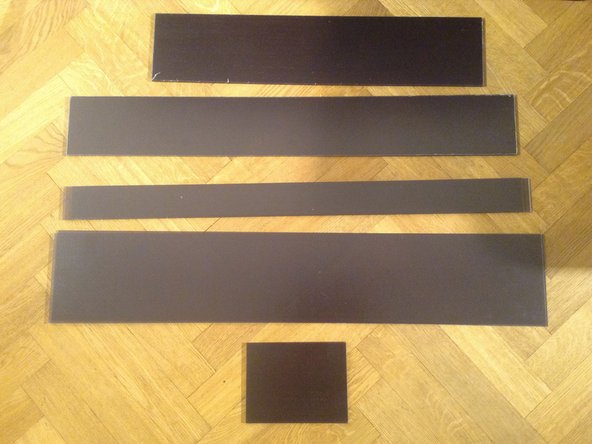

  41. [2] polycarbonate sheet 847x156x3mm 3.04

    • [2] polycarbonate sheet 847x156x3mm 3.04

    Edit

  42. [2] polycarbonate sheet 892x847x3mm 3.02?

    • [2] polycarbonate sheet 892x847x3mm 3.02?

    Edit

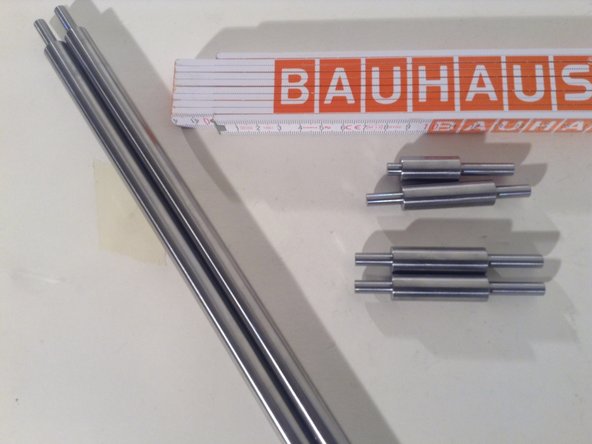

  43. [1] drive shaft, stepped

    • [1] drive shaft, stepped

    Edit

  44. [1] drive shaft, stepped

    • [1] drive shaft, stepped

    Edit

  45. [2] drive shaft, stepped

    • [2] drive shaft, stepped

    Edit

  46. [2] drive shaft, stepped

    • [2] drive shaft, stepped

    Edit

  47. [17] screw DIN912-like, M3x06

    • [17] screw DIN912-like, M3x06

    Edit

  48. [29] screw DIN912-like, M3x10

    • [29] screw DIN912-like, M3x10

    Edit

  49. [12] screw DIN912-like, M3x16 3.29

    • [12] screw DIN912-like, M3x16 3.29

    Edit

  50. [5] screw DIN912-like, M3x25

    • [5] screw DIN912-like, M3x25

    Edit

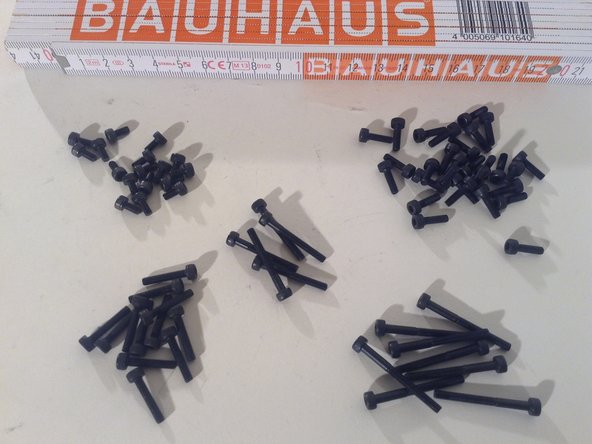

  51. [8] screw DIN912-like, M3x30 3.29

    • [8] screw DIN912-like, M3x30 3.29

    Edit

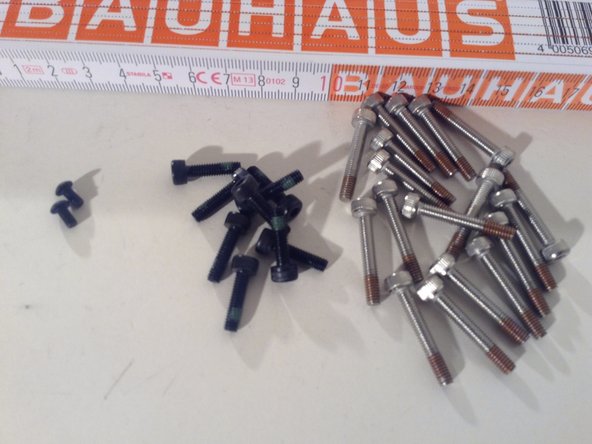

  52. [2] screw ISO7380-like, button, M3x06 3.40

    • [2] screw ISO7380-like, button, M3x06 3.40

    Edit

  53. [9] screw DIN912-like, adhesive, M4x15 3.40

    • [9] screw DIN912-like, adhesive, M4x15 3.40

    Edit

  54. [18] screw DIN912-like, adhesive, M4x25

    • [18] screw DIN912-like, adhesive, M4x25

    Edit

  55. [134] screw DIN912-like, M5x08 3.48

    • [134] screw DIN912-like, M5x08 3.48

    Edit

  56. [376] screw DIN912-like, M5x10 3.48

    • [376] screw DIN912-like, M5x10 3.48

    Edit

  57. [28] screw DIN912-like, M5x12 3.48

    • [28] screw DIN912-like, M5x12 3.48

    Edit

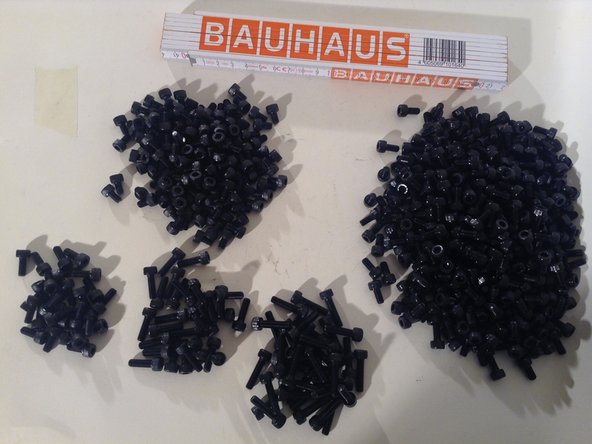

  58. [29] screw DIN912-like, M5x16

    • [29] screw DIN912-like, M5x16

    Edit

  59. [36] screw DIN912-like, M5x20

    • [36] screw DIN912-like, M5x20

    Edit

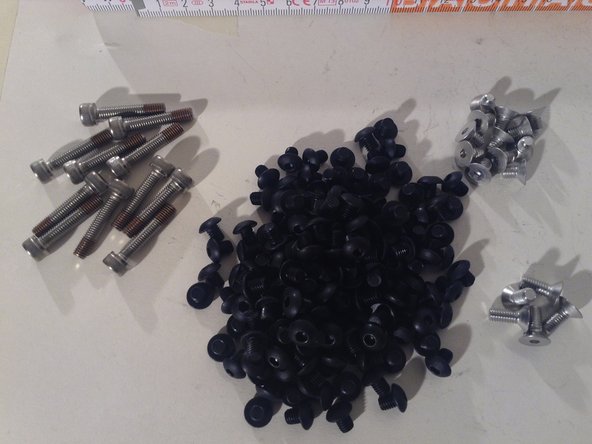

  60. [11] screw DIN912-like, adhesive, M5x25 4.14

    • [11] screw DIN912-like, adhesive, M5x25 4.14

    Edit

  61. [166] screw ISO7380-like, button, M5x06

    • [166] screw ISO7380-like, button, M5x06

    Edit

  62. [12]screw DIN7991-like, sunk, M5x08

    • [12]screw DIN7991-like, sunk, M5x08

    Edit

  63. [5] screw DIN7991-like, sunk, M5x12 4.14

    • [5] screw DIN7991-like, sunk, M5x12 4.14

    Edit

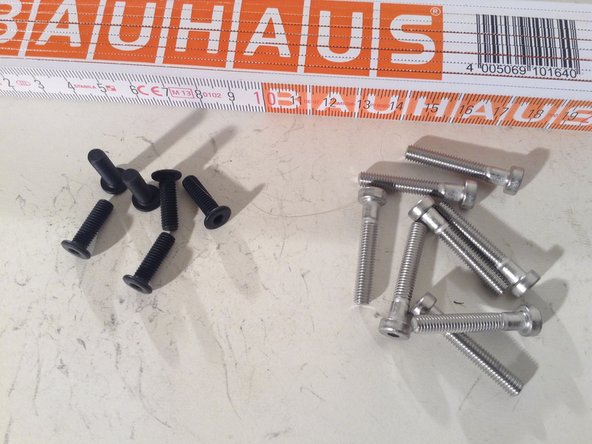

  64. [6] screw DIN7984-like, low, M5x16 4.25

    • [6] screw DIN7984-like, low, M5x16 4.25

    Edit

  65. [8] screw DIN7984-like, low, M5x30

    • [8] screw DIN7984-like, low, M5x30

    Edit

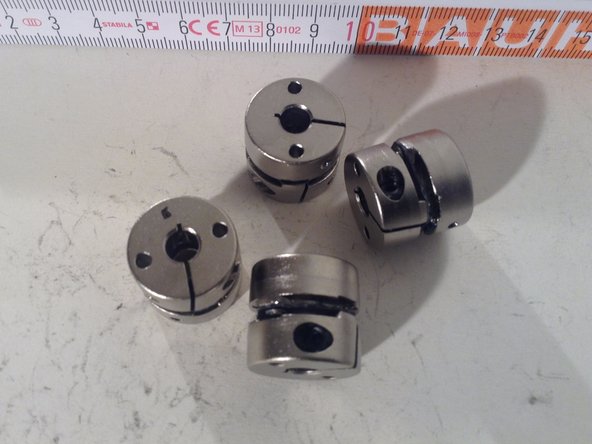

  66. [4] 6 mm flexible couplers

    • [4] 6 mm flexible couplers

    Edit

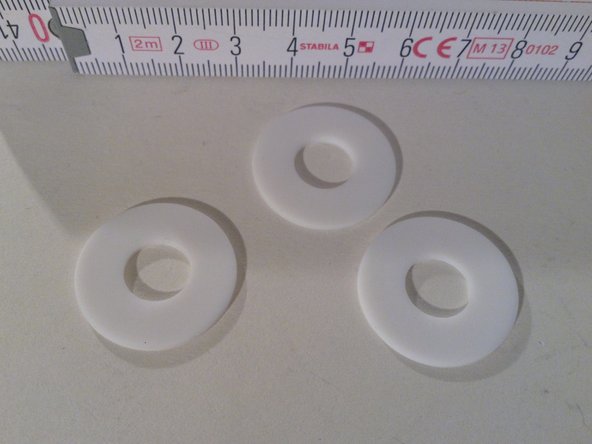

  67. [3] slide washers

    • [3] slide washers

    Edit

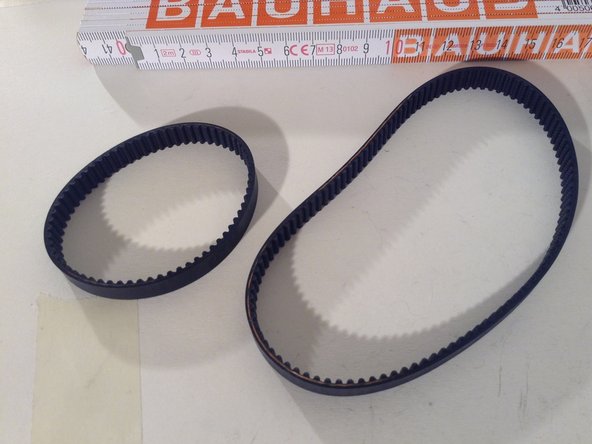

  68. timing belt GT 3M, 9mm, 109 teeth

    • timing belt GT 3M, 9mm, 109 teeth

    Edit

  69. timing belt GT 3M, 9mm, 65 teeth

    • timing belt GT 3M, 9mm, 65 teeth

    Edit

  70. timing pulley GT/HTD 3M, 18 teeth, bore 5mm 4.55

    • timing pulley GT/HTD 3M, 18 teeth, bore 5mm 4.55

    Edit

  71. timing pulley GT/HTD 3M, 48 teeth, bore 12mm 4.55

    • timing pulley GT/HTD 3M, 48 teeth, bore 12mm 4.55

    Edit

  72. [3] timing pulley GT/HTD 3M, 20 teeth, bore 6mm

    • [3] timing pulley GT/HTD 3M, 20 teeth, bore 6mm

    Edit

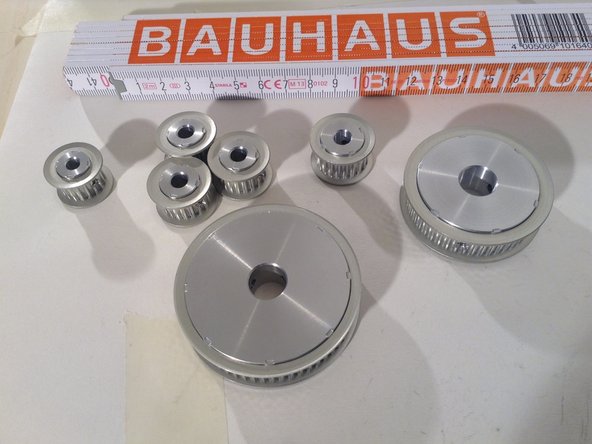

  73. timing pulley GT/HTD 3M, 22 teeth, bore 6.35mm

    • timing pulley GT/HTD 3M, 22 teeth, bore 6.35mm

    Edit

  74. timing pulley GT/HTD 3M, 60 teeth, bore 12mm

    • timing pulley GT/HTD 3M, 60 teeth, bore 12mm

    Edit

  75. SKIPPED STEP SKIPPED STEP

    • SKIPPED STEP

    Edit

  76. extrusion 2020, 1564mm 5.20 extrusion 2020, 1564mm 5.20

    • extrusion 2020, 1564mm 5.20

    Edit

  77. extrusion 2020, 60mm, 45deg extrusion 2020, 60mm, 45deg

    • extrusion 2020, 60mm, 45deg

    Edit

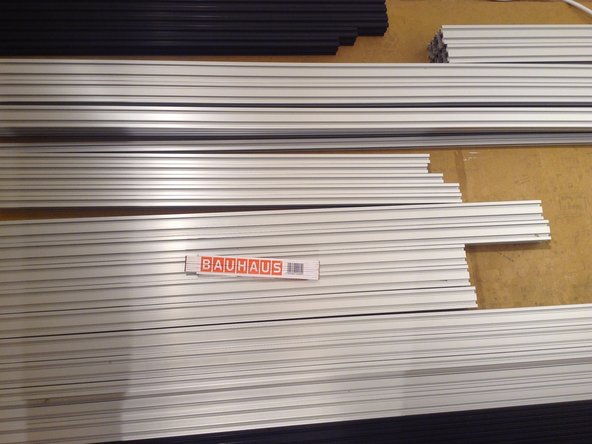

  78. [2] extrusion 2020, 80mm [2] extrusion 2020, 80mm

    • [2] extrusion 2020, 80mm

    Edit

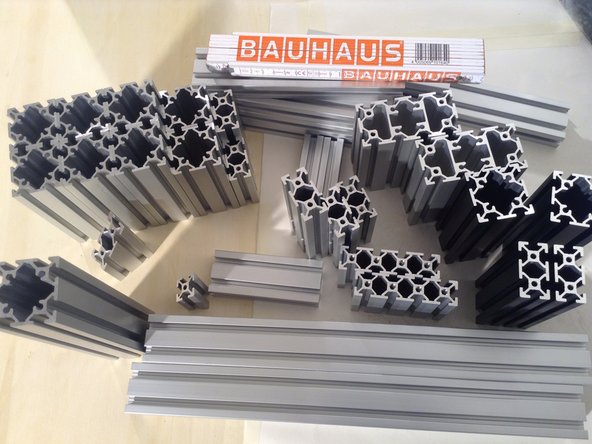

  79. extrusion 2040, 100mm extrusion 2040, 100mm

    • extrusion 2040, 100mm

    Edit

  80. [2] extrusion 2040, 1130mm [2] extrusion 2040, 1130mm

    • [2] extrusion 2040, 1130mm

    Edit

  81. [2] extrusion 2040, 120mm, black [2] extrusion 2040, 120mm, black

    • [2] extrusion 2040, 120mm, black

    Edit

  82. extrusion 2040, 124mm, + mount holes extrusion 2040, 124mm, + mount holes

    • extrusion 2040, 124mm, + mount holes

    Edit

  83. [5] extrusion 2040, 1260mm, black [5] extrusion 2040, 1260mm, black

    • [5] extrusion 2040, 1260mm, black

    Edit

  84. extrusion 2040, 148mm, + mount holes extrusion 2040, 148mm, + mount holes

    • extrusion 2040, 148mm, + mount holes

    Edit

  85. extrusion 2040, 1564mm extrusion 2040, 1564mm

    • extrusion 2040, 1564mm

    Edit

  86. [4] extrusion 2040, 1620mm [4] extrusion 2040, 1620mm

    • [4] extrusion 2040, 1620mm

    Edit

  87. [4] extrusion 2040, 190mm [4] extrusion 2040, 190mm

    • [4] extrusion 2040, 190mm

    Edit

  88. extrusion 2040, 320mm extrusion 2040, 320mm

    • extrusion 2040, 320mm

    Edit

  89. extrusion 2040, 62mm, + mount holes extrusion 2040, 62mm, + mount holes

    • extrusion 2040, 62mm, + mount holes

    Edit

  90. extrusion 2040, 750mm, black extrusion 2040, 750mm, black

    • extrusion 2040, 750mm, black

    Edit

  91. extrusion 2040, 75mm extrusion 2040, 75mm

    • extrusion 2040, 75mm

    Edit

  92. extrusion 2040, 790mm, black extrusion 2040, 790mm, black

    • extrusion 2040, 790mm, black

    Edit

  93. extrusion 2040, 80mm extrusion 2040, 80mm

    • extrusion 2040, 80mm

    Edit

  94. extrusion 2040, 80mm, 45deg extrusion 2040, 80mm, 45deg

    • extrusion 2040, 80mm, 45deg

    Edit

  95. [3] extrusion 2040, 830mm [3] extrusion 2040, 830mm

    • [3] extrusion 2040, 830mm

    Edit

  96. [2] extrusion 2040, 858mm, black [2] extrusion 2040, 858mm, black

    • [2] extrusion 2040, 858mm, black

    Edit

  97. [2] extrusion 2040, 860mm [2] extrusion 2040, 860mm

    • [2] extrusion 2040, 860mm

    Edit

  98. extrusion 2040, 860mm, black extrusion 2040, 860mm, black

    • extrusion 2040, 860mm, black

    Edit

  99. extrusion 2040, 96mm, + mount holes extrusion 2040, 96mm, + mount holes

    • extrusion 2040, 96mm, + mount holes

    Edit

  100. [2] extrusion 2080, 70mm [2] extrusion 2080, 70mm

    • [2] extrusion 2080, 70mm

    Edit

  101. [2] extrusion 4040, 100mm [2] extrusion 4040, 100mm

    • [2] extrusion 4040, 100mm

    Edit

  102. [2] extrusion 4040, 1130mm [2] extrusion 4040, 1130mm

    • [2] extrusion 4040, 1130mm

    Edit

  103. [6] extrusion 4040, 120mm [6] extrusion 4040, 120mm

    • [6] extrusion 4040, 120mm

    Edit

  104. [2] xtrusion 4040, 120mm, black [2] xtrusion 4040, 120mm, black

    • [2] xtrusion 4040, 120mm, black

    Edit

  105. extrusion 4040, 1418mm extrusion 4040, 1418mm

    • extrusion 4040, 1418mm

    Edit

  106. extrusion 4040, 1564mm extrusion 4040, 1564mm

    • extrusion 4040, 1564mm

    Edit

  107. extrusion 4040, 1620mm extrusion 4040, 1620mm

    • extrusion 4040, 1620mm

    Edit

  108. extrusion 4040, 190mm

    • extrusion 4040, 190mm

    Edit

  109. [2] extrusion 4040, 360mm

    • [2] extrusion 4040, 360mm

    Edit

  110. [3] extrusion 4040, 860mm

    • [3] extrusion 4040, 860mm

    Edit

  111. [2] extrusion 4080, 100mm [2] extrusion 4080, 100mm

    • [2] extrusion 4080, 100mm

    Edit

  112. [2] extrusion 4080, 1620mm [2] extrusion 4080, 1620mm

    • [2] extrusion 4080, 1620mm

    Edit

  113. [2] extrusion 4080, 940mm [2] extrusion 4080, 940mm

    • [2] extrusion 4080, 940mm

    Edit

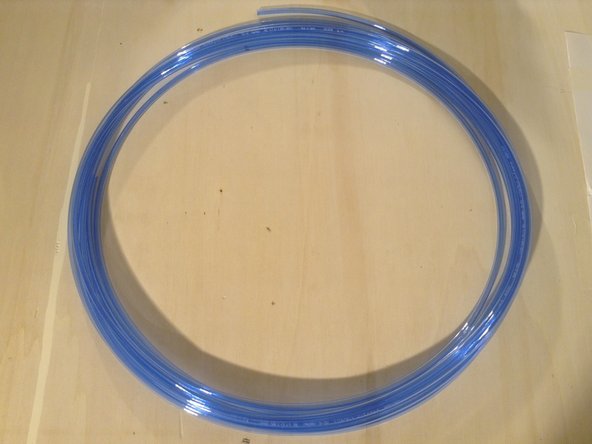

  114. air tube, ODxID 6x4mm, 10m

    • air tube, ODxID 6x4mm, 10m

    Edit

    • [3] one-touch air coupling

    Edit

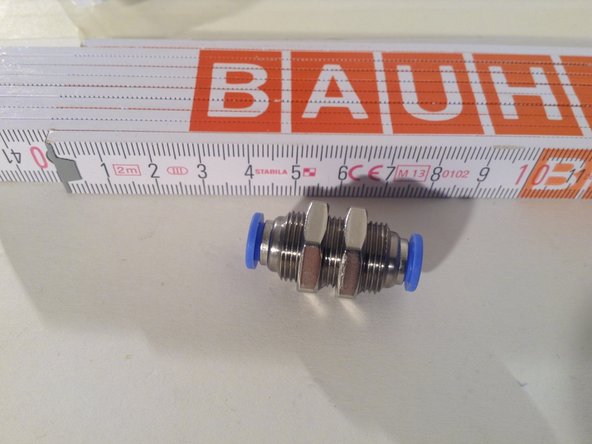

  116. one touch panel mount

    • one touch panel mount

    Edit

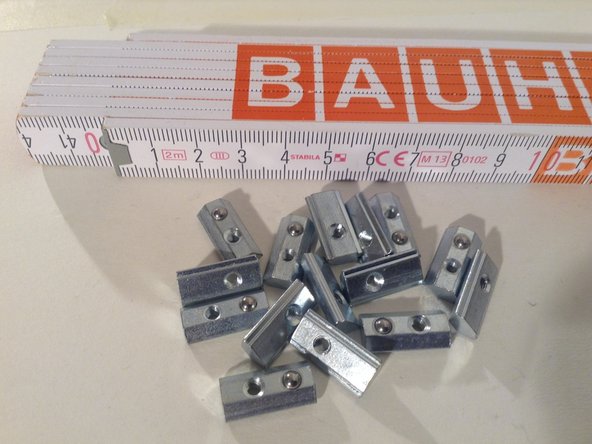

  117. [15] nut, t-slot, post

    • [15] nut, t-slot, post

    Edit

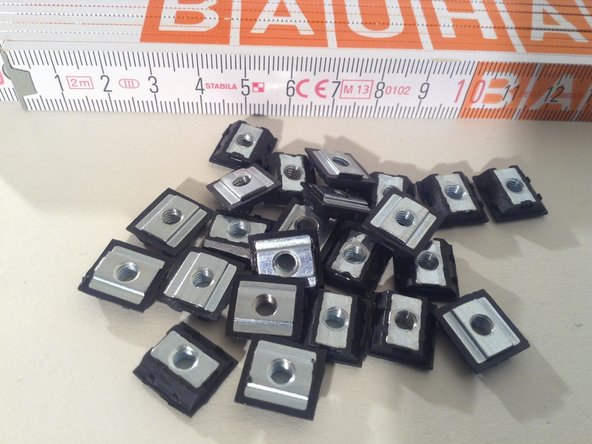

  118. [23] nut, t-slot, pre

    • [23] nut, t-slot, pre

    Edit

    • [618] nut T-slot, post, M5, lock

    Edit

    • water hose ID 9mm, 10m

    Edit

  121. [18] washer DIN125-like, form A, M4

    • [18] washer DIN125-like, form A, M4

    Edit

  122. [213] washer DIN125-like, form A, M5

    • [213] washer DIN125-like, form A, M5

    Edit

  123. [1] washer DIN9021-like, form G, M4, 50 pack

    • [1] washer DIN9021-like, form G, M4, 50 pack

    Edit

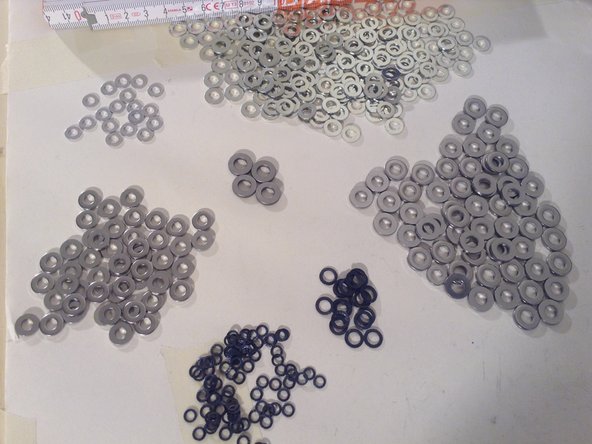

  124. [3] washer DIN9021-like, form G, M5, 20 pack

    • [3] washer DIN9021-like, form G, M5, 20 pack

    Edit

  125. [4] washer precision, ID 6mm

    • [4] washer precision, ID 6mm

    Edit

  126. [20] washer Schnorr-like, lock, M5

    • [20] washer Schnorr-like, lock, M5

    Edit

  127. [87] washer Schnorr-like, lock, M3

    • [87] washer Schnorr-like, lock, M3

    Edit

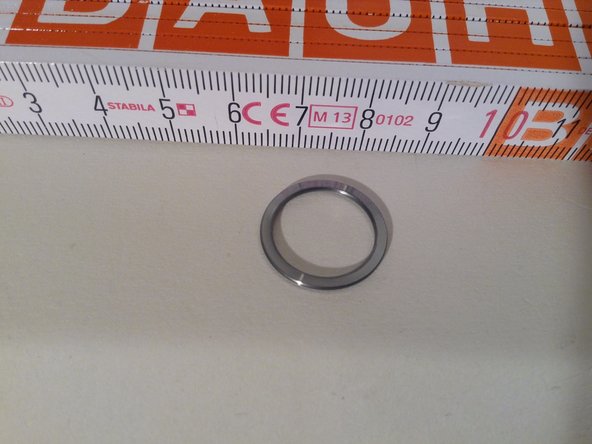

  128. washer precision, OD 19mm

    • washer precision, OD 19mm

    Edit

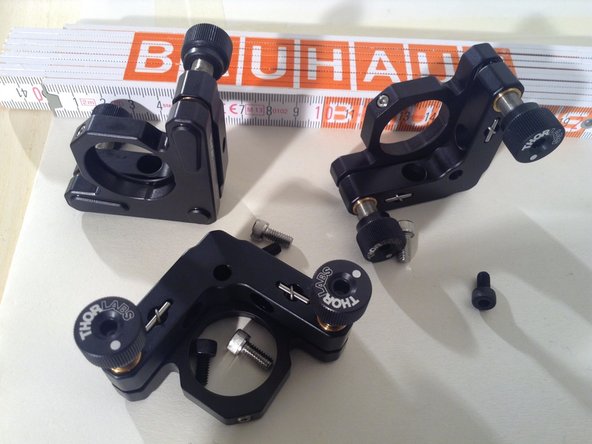

  129. STEPS 129-133 THOR LABS

    • STEPS 129-133 THOR LABS

    • [3] mirror mount

    Edit

  130. lens tube

    • lens tube

    Edit

  131. outer lock ring

    • outer lock ring

    Edit

  132. cleaning swabs

    • cleaning swabs

    Edit

  133. cleaning tissues

    • cleaning tissues

    • safety glasses - missing

    Edit

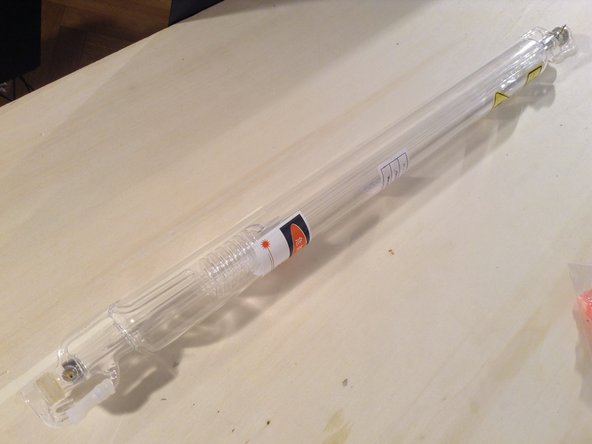

  134. STEP 134 - COLE TECH

    • STEP 134 - COLE TECH

    • 40W laser tube (since shipping of 100W laser tube is difficult, we are building the existing laser cutter with a 40W for testing and shipping 100W tube + supply + chiller separately)

    Edit

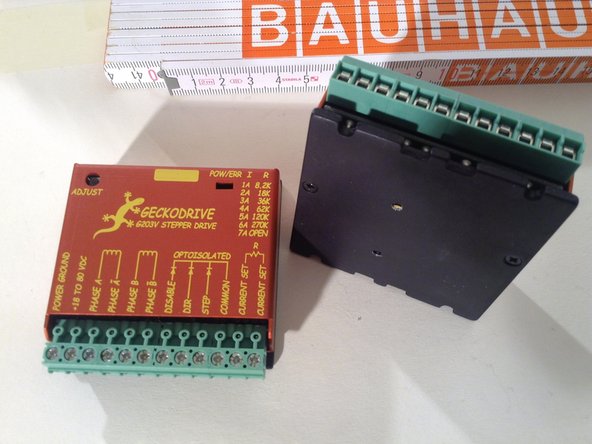

  135. STEP 135 - GECKODRIVE

    • STEP 135 - GECKODRIVE

    • [2] g203v stepper drivers

    Edit

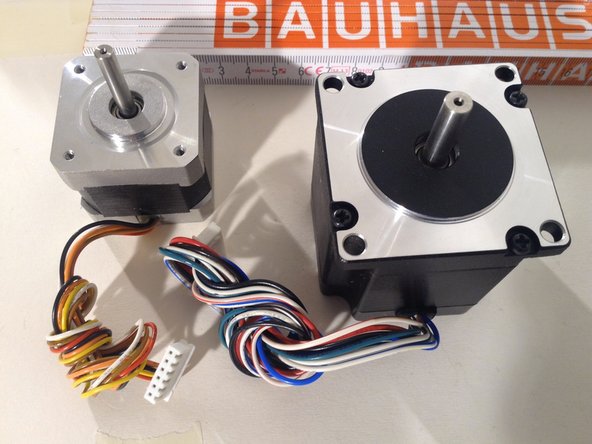

  136. STEPS 136-137 - NANOTEC

    • STEPS 136-137 - NANOTEC

    • NEMA 17 stepper motor

    Edit

  137. NEMA 23 stepper motor

    • NEMA 23 stepper motor

    Edit

    • STEPS 138-139 - EBAY

    • [11] CAT5 cable

    Edit

    • cog belt, 6.6m

    Edit
Finish Line

One other person completed this guide.

Author

with 2 other contributors

Robert Kirk

Member since: 04/28/2013

2,008 Reputation

24 Guides authored

0 Comments

Add Comment

View Statistics:

Past 24 Hours: 0

Past 7 Days: 0

Past 30 Days: 3

All Time: 572
