Installing TAZ Final Assembly

Written By: Robert Kirk
  • Comments: 0
  • Favorites: 0
  • Completions: 1

Difficulty

Moderate

Steps

7

Time Required

Suggest a time??

Sections

1

Flags

0

  1. GATHER PARTS FOR THE FINAL ASSEMBLY TL-FX0006 Fixture TL-FX0018

    • GATHER PARTS FOR THE FINAL ASSEMBLY

    • TL-FX0006 Fixture

    • TL-FX0018

    • TL-FX0017

    Edit

  2. ADD FEET TO THE FRAME ASSEMBLY Install 4x rubber feet to bottom of frame. Install 4x rubber feet to bottom of frame.

    • ADD FEET TO THE FRAME ASSEMBLY

    • Install 4x rubber feet to bottom of frame.

    Edit

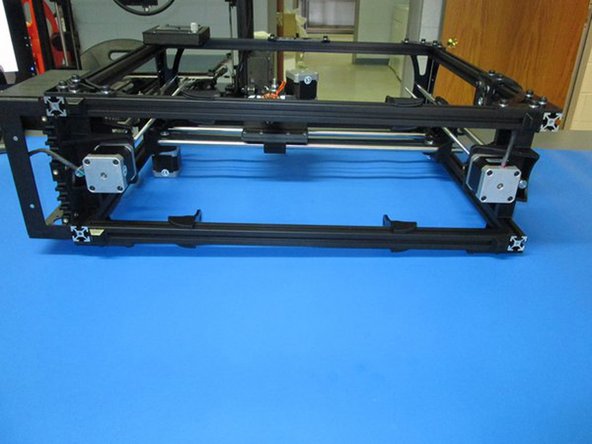

  3. ADD FEET TO FRAME ASSEMBLY (continued)

    • ADD FEET TO FRAME ASSEMBLY (continued)

    • Take note of location, do not cover bottom of vertical extrusion.

    • All four feet shown

    Edit

  4. PLUG IN Z LEFT MOTOR Route Z left motor wire through relief position #5.

    • PLUG IN Z LEFT MOTOR

    • Route Z left motor wire through relief position #5.

    • Plug into the board in location shown.

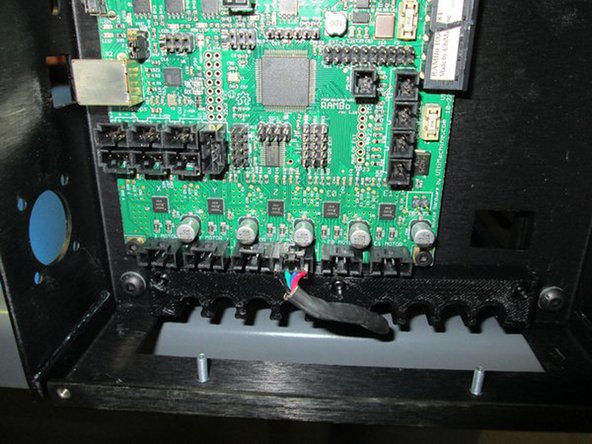

    • Photo 1 - Route Z left motor wire through relief #5

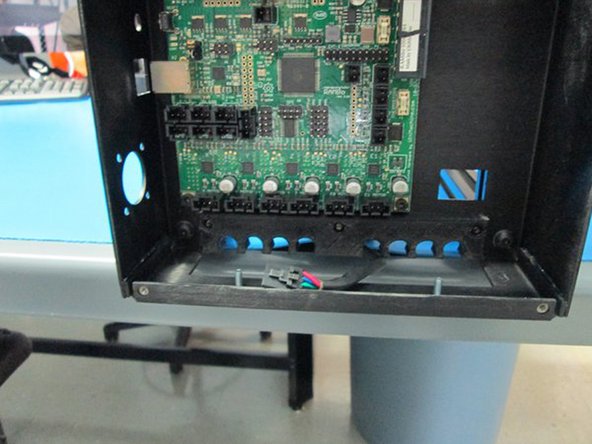

    • Photo 2 - Plug motor into RAMBo board in this location

    Edit

  5. INSTALL THE Z SWITCH Install switch as shown and secure with a M3 x 6 set screw. Route wires through relief #6 and plug in as shown.

    • INSTALL THE Z SWITCH

    • Install switch as shown and secure with a M3 x 6 set screw.

    • Route wires through relief #6 and plug in as shown.

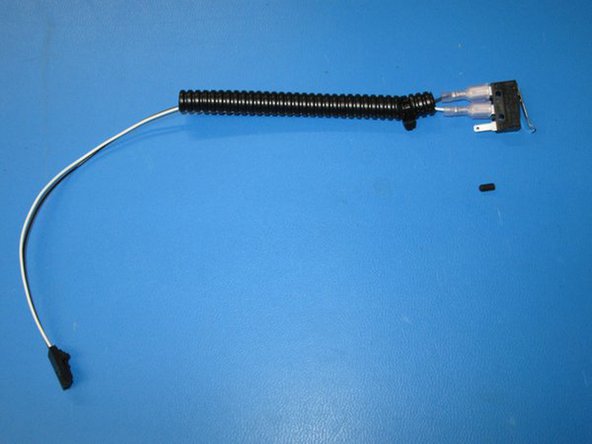

    • Photo 1 - Limit switch parts

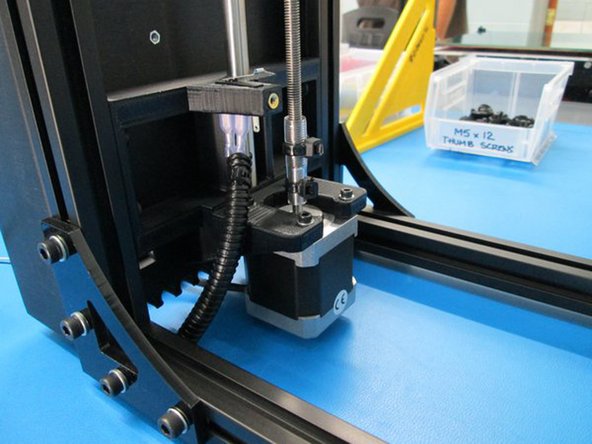

    • Photo 2 - Install switch into Z motor mount left

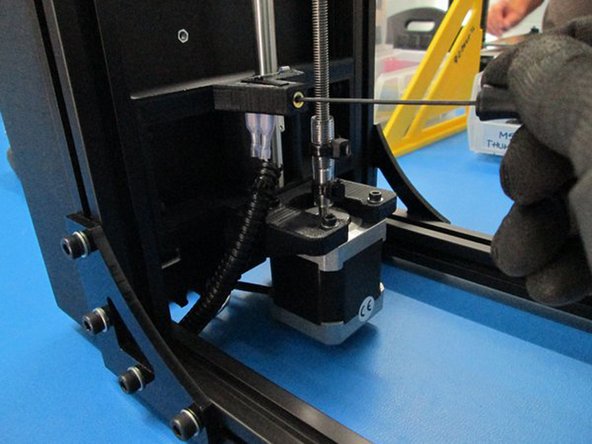

    • Photo 3 - Secure with set screw

    Edit

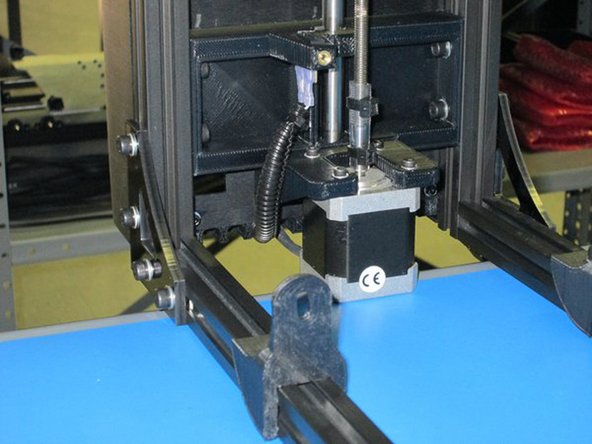

  6. INSTALL THE Z SWITCH (continued) Route wires through relief #6 and plug in as shown.

    • INSTALL THE Z SWITCH (continued)

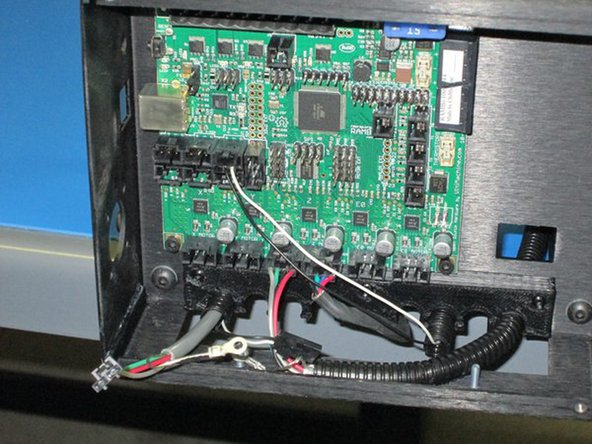

    • Route wires through relief #6 and plug in as shown.

    • Plug in as shown

    Edit

  7. ADD THE Z RIGHT MOTOR EXTENSION Connect the Z motor extension to the right Z motor.

    • ADD THE Z RIGHT MOTOR EXTENSION

    • Connect the Z motor extension to the right Z motor.

    • Route the extension through relief position #8.

    • Plug in as shown and put ground lug on post.

    • Zip tie at the 3 locations indicated while removing slack.

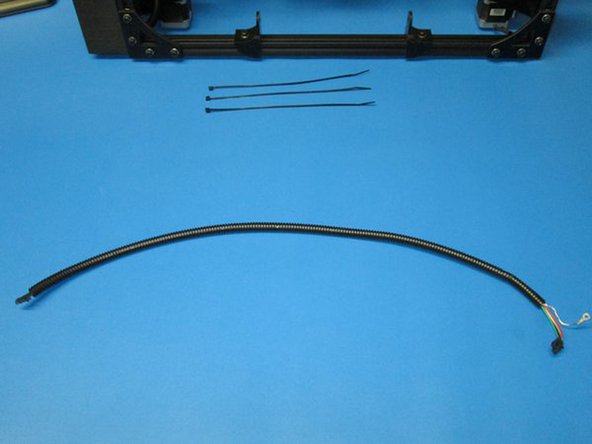

    • Photo 1 - Z motor right extension parts

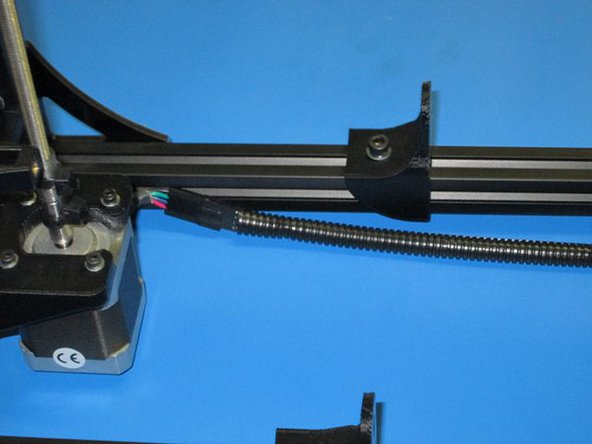

    • Photo 2 - Plug extension into Motor

    Edit
