Installing Module - X End Motor

Written By: Robert Kirk
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

4

Time Required

Suggest a time??

Sections

1

Flags

0

  1. GATHER THE PARTS FOR THE X END MOTOR 1.27mm Allen Driver

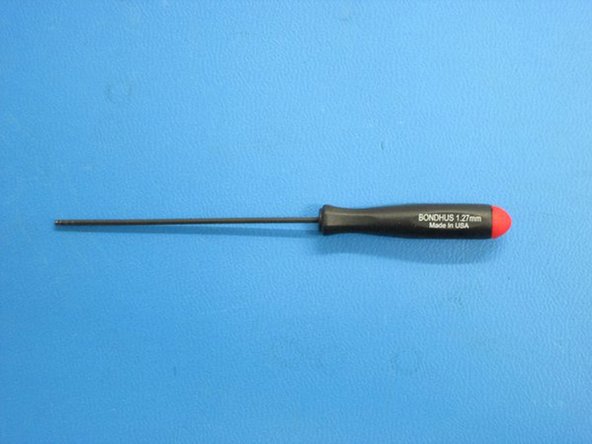

    • GATHER THE PARTS FOR THE X END MOTOR

    • 1.27mm Allen Driver

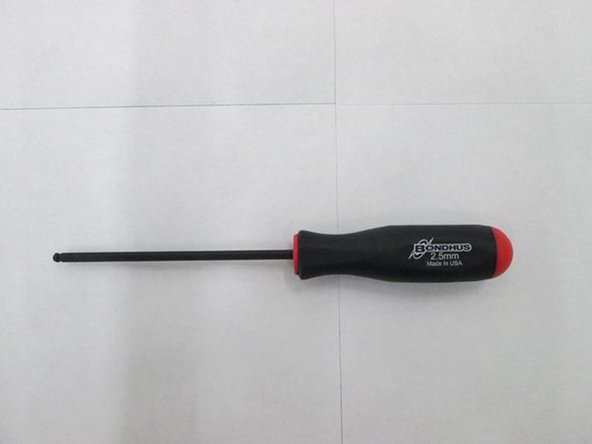

    • 2.5mm Allen Driver

    Edit

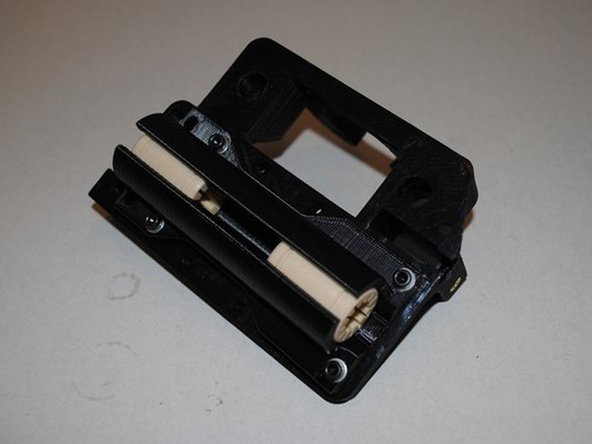

  2. INSTALL THE DOUBLE BEARING HOLDER Assemble the double bearing holder onto the X motor mount with 4x M3 x 12 SHCS and washers.

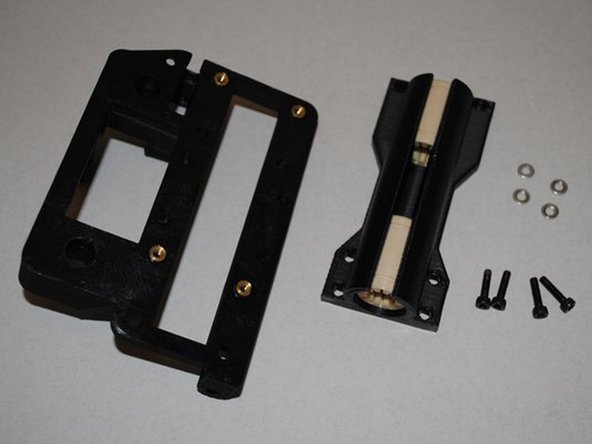

    • INSTALL THE DOUBLE BEARING HOLDER

    • Assemble the double bearing holder onto the X motor mount with 4x M3 x 12 SHCS and washers.

    • Leave the bearing holder loose at this point.

    • Does the bearing holder wiggle around?

    Edit

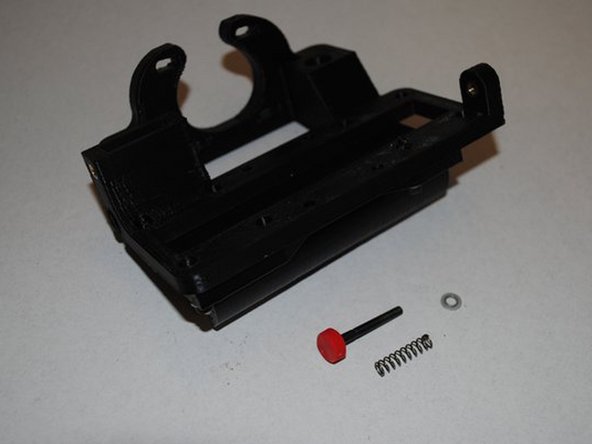

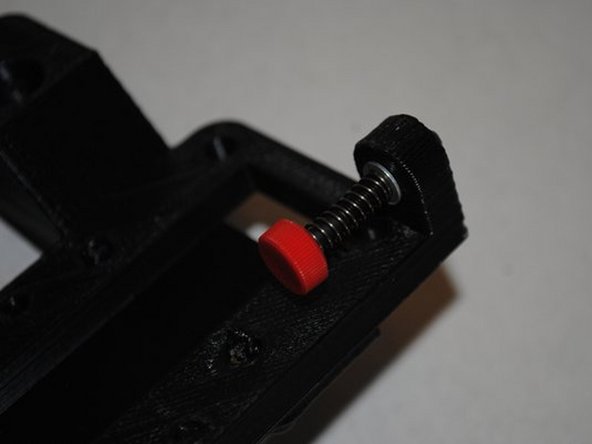

  3. INSTALL THE Z SWITCH ADJUSTMENT SCREW Install the Z switch adjustment screw, with spring and M3 Washer.

    • INSTALL THE Z SWITCH ADJUSTMENT SCREW

    • Install the Z switch adjustment screw, with spring and M3 Washer.

    Edit

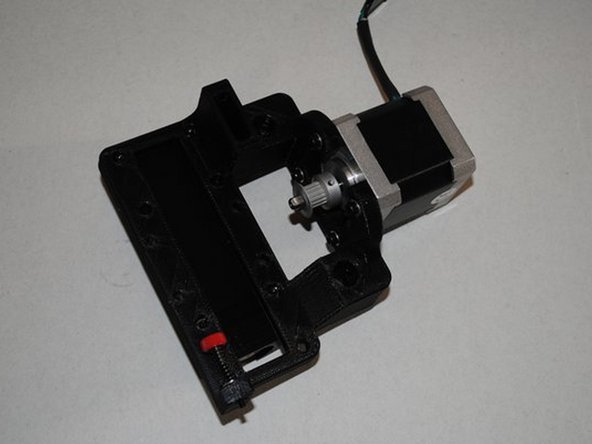

  4. INSTALL THE MOTOR AND PULLEY Install pulley onto motor shaft, verify one set screw is aligned with the flat on the motor shaft.

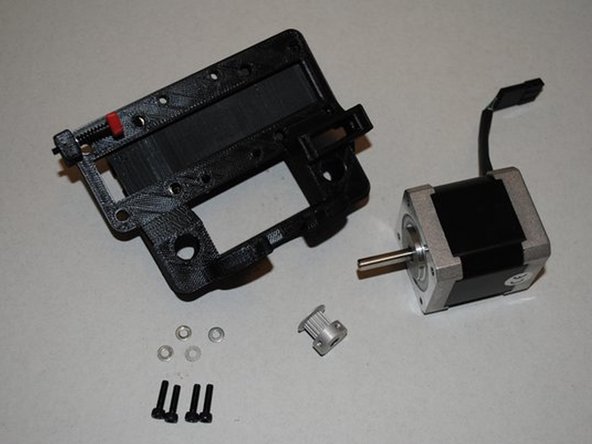

    • INSTALL THE MOTOR AND PULLEY

    • Install pulley onto motor shaft, verify one set screw is aligned with the flat on the motor shaft.

    • Install motor onto X motor mount using 4x M3 x 12 SHCS and M3 washers.

    • Take note of the alignment of the motor wires.

    • Verify Assembly is complete.

    Edit
