Installing Module - X End Idler

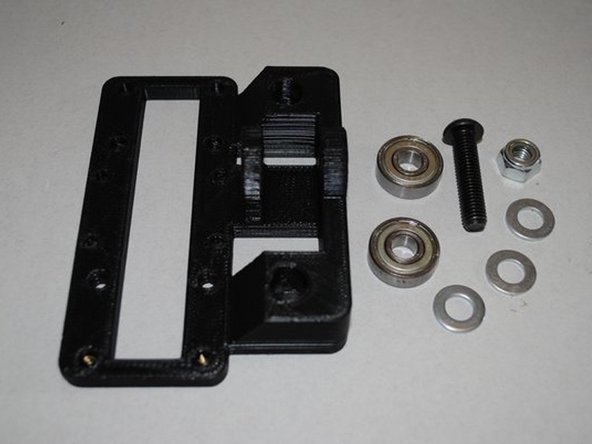

GATHER PARTS TO ASSEMBLE BEARINGS ONTO END IDLER

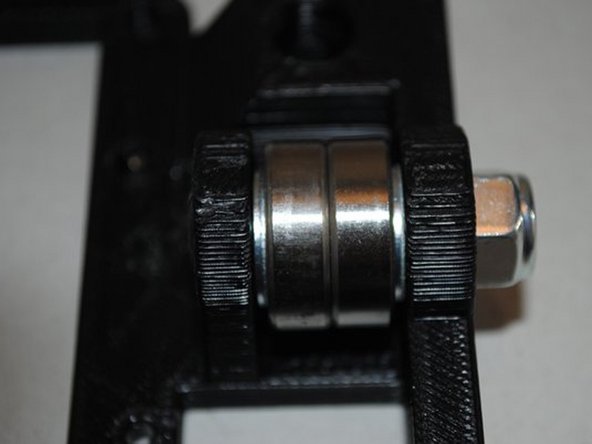

ASSEMBLE BEARINGS ONTO X END IDLER

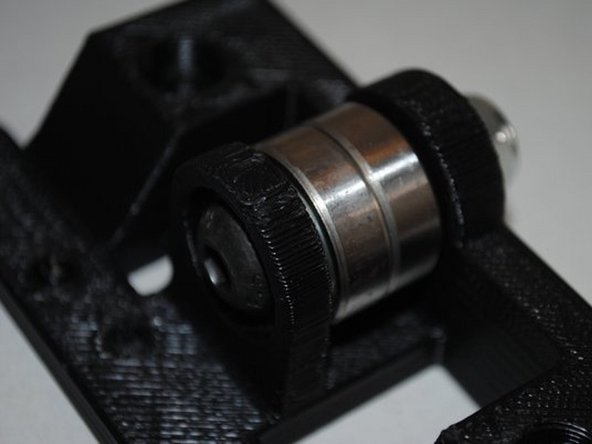

Install 2 608 Bearings with the M8 x 35 BHCS, M8 washers and M8 Nyloc nut.

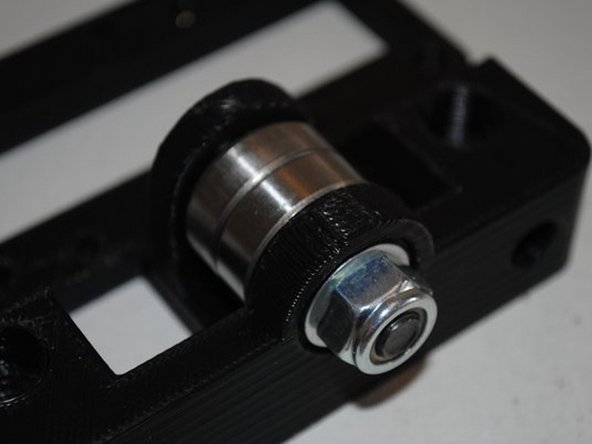

Tighten Bolt all the way down.

Note, there is no washer under the head of the bolt.

Do the bearings spin freely?

Photo 1 - M8 washers on both sides of bearings

Photo 2 - No washer under bolt head.

Photo 3 - M8 Washer under nut

ASSEMBLE DOUBLE BEARING HOLDER ONTO X END IDLER

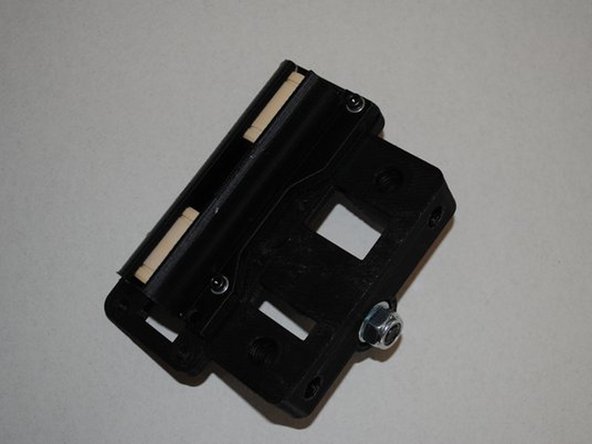

Assemble the double bearing holder onto the x end idler with 4x M3 x 12 SHCS and washers.

Leave the bearing holder loose at this point.

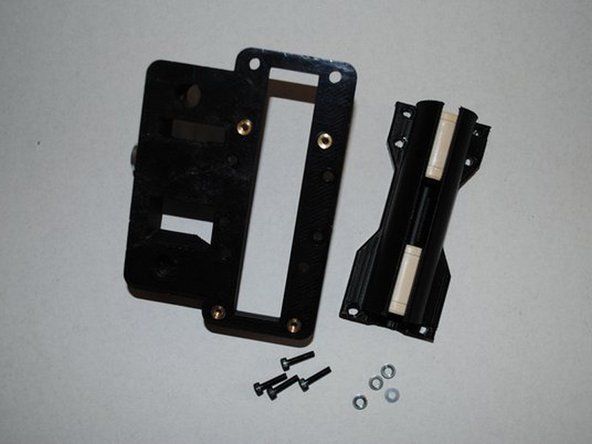

Photo 1 - Required parts to assemble the double bearing holder.

Photo 2 - Bearing holder assembled, take note of orientation.

Does the bearing holder wiggle around?
