Installing Module - Print Head Assembly

GATHER THE PARTS FOR THE PRINT HEAD ASSEMBLY

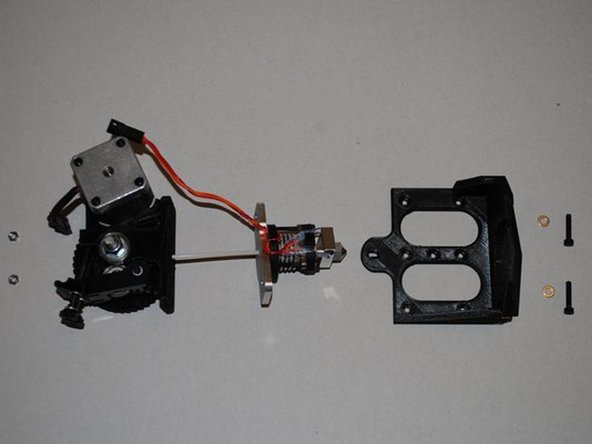

Parts: Extruder Assembly Extruder Mount Budaschnozzle 2.0c with 0.35 nozzle. M4 x 20 SHCS M4 Washer

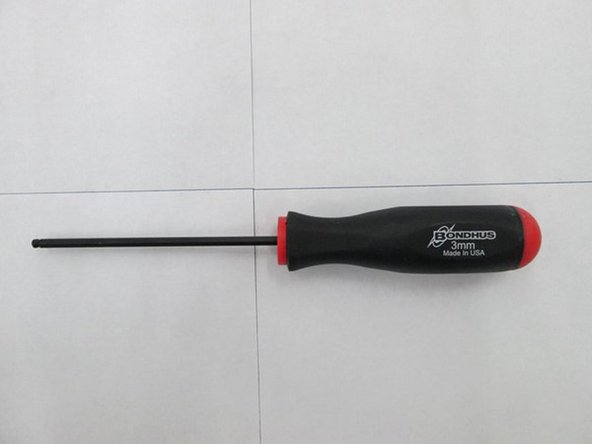

Tools: 3mm Allen Driver Short piece of 3mm filament

ASSEMBLE PRINT HEAD

Slide the piece of filament through the extruder and into the Budaschnozzle.

Insert 2x M4 nuts into the mounting flange of the extruder body.

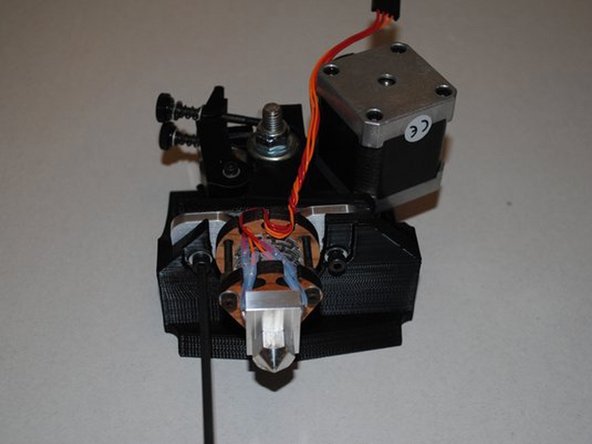

ASSEMBLE PRINT HEAD (continued)

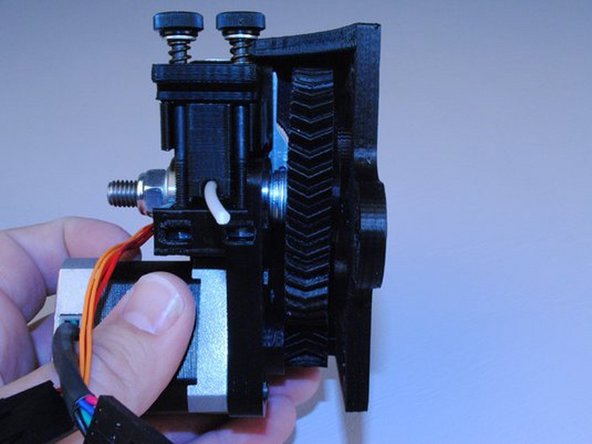

Using 2x M4 x 20 SHCS and M4 washers, assemble the Budaschnozzle, extruder and extruder mount together.

Verify the gear does not rub the mount.
