Installing Module - Electronics Case Assembly

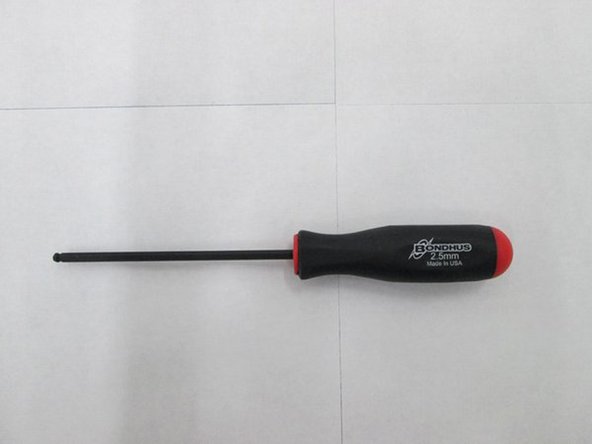

GATHER PARTS AND TOOLS TO BUILD THE ELECTRONICS CASE ASSEMBLY

2.5mm Allen Driver

Electronics case RAMBo 1.1b board Inner strain relief with inserts M3 x 12 SHCS M3 x 5 SHCS M3 washer

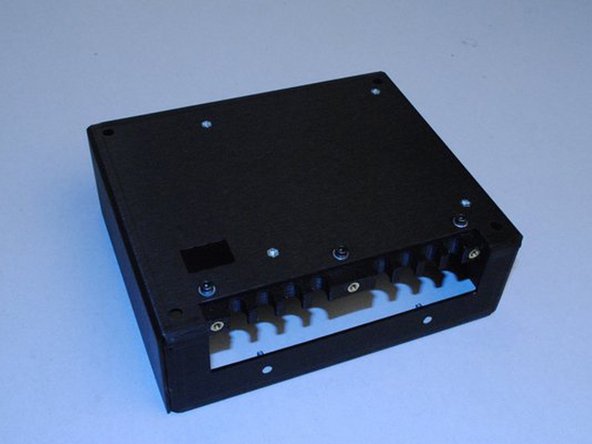

INSTALL THE INNER STRAIN RELIEF

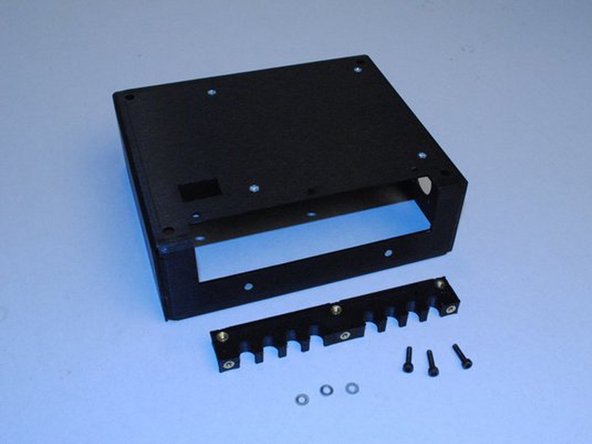

Install the Inner strain relief using 3x M3 x 12 SHCS and M3 washers.

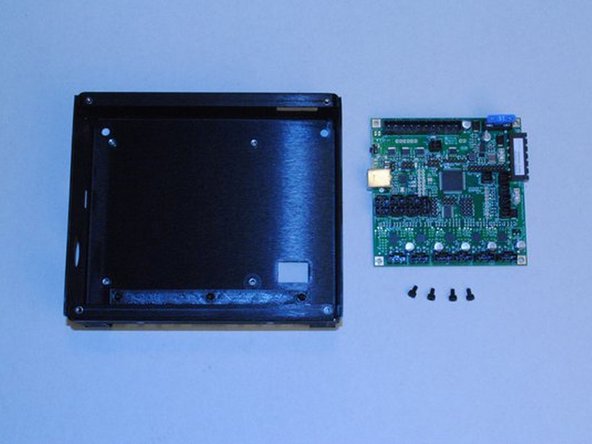

INSTALL THE RAMBO BOARD

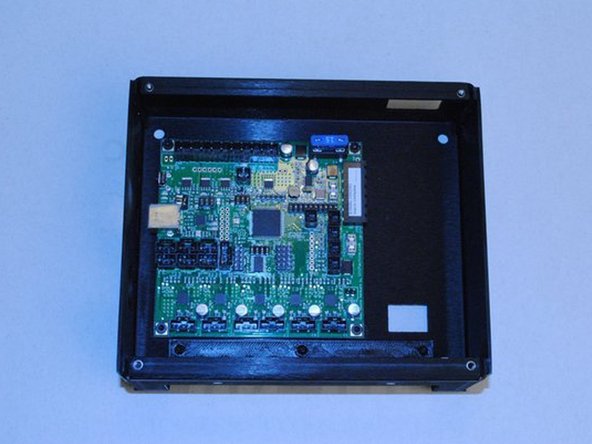

Using 4x M3 x 5 SHCS, install the RAMBo board into the electronics case.

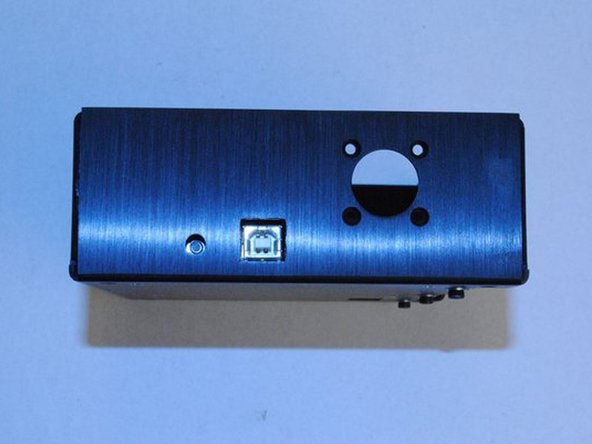

Make sure the USB plug lines up with the hole in the case.

Does the USB plug line up with the case?
