Installing Module - Case Fan Assembly

Written By: Robert Kirk
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

2

Time Required

Suggest a time??

Sections

1

Flags

0

  1. Gather parts and tools for assembling the case fan.

    • Gather parts and tools for assembling the case fan.

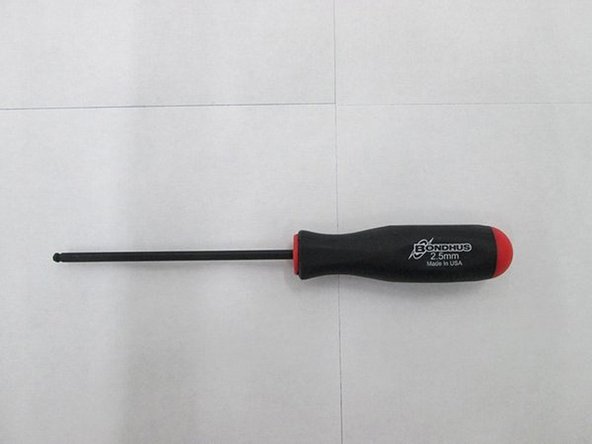

    • Photo 1 - 2.5mm Allen Driver

    • This entire component was already assembled. This step will not be necessary with the kits we have.

    Edit

  2. Install Fan onto electronics cover using M3 Washers and M3 Nuts. Be sure to have the direction of air flow blowing away from the cover Photo 1 - Parts of the fan assembly

    • Install Fan onto electronics cover using M3 Washers and M3 Nuts.

    • Be sure to have the direction of air flow blowing away from the cover

    • Photo 1 - Parts of the fan assembly

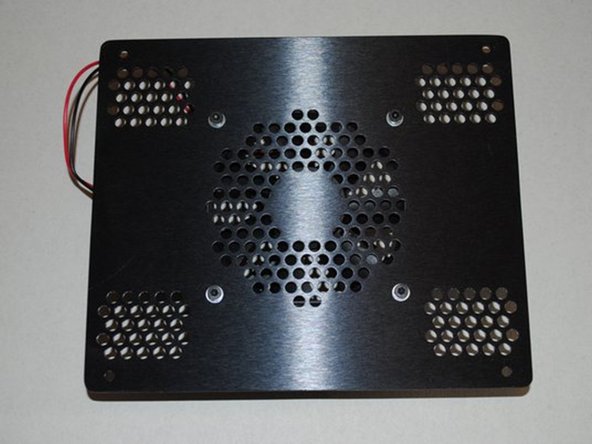

    • Photo 2 - Top View

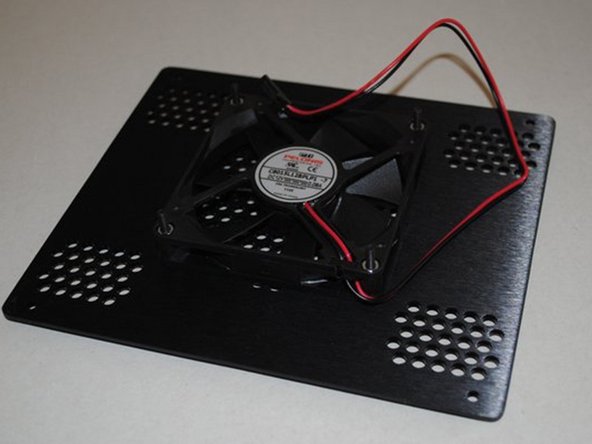

    • Photo 3 - Fan assembled onto cover

    Edit
