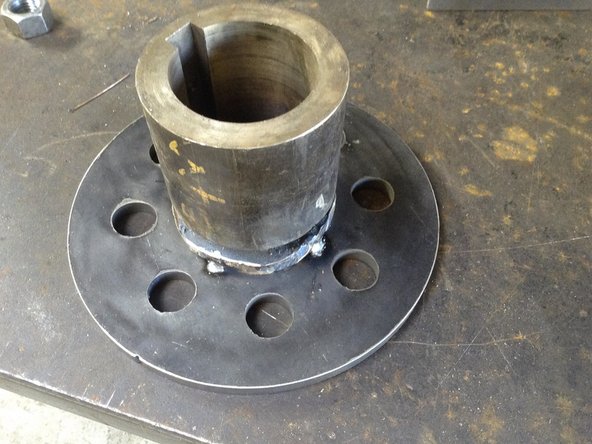

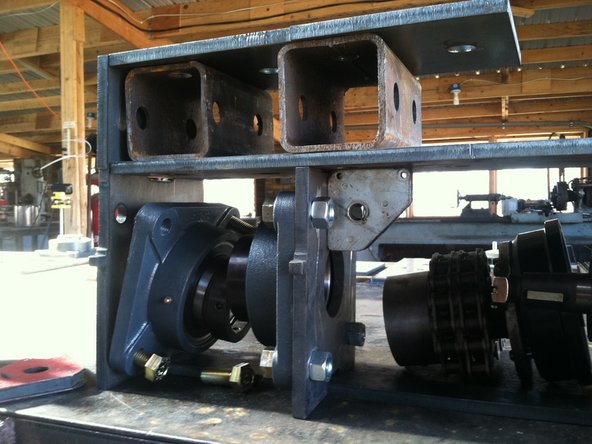

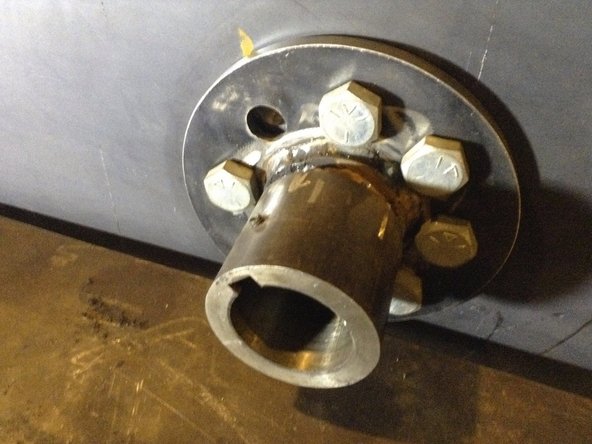

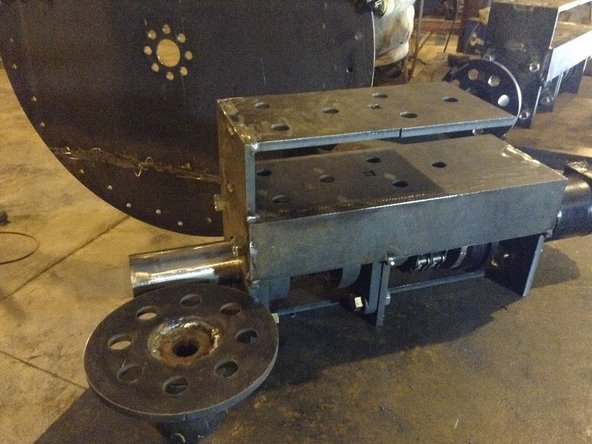

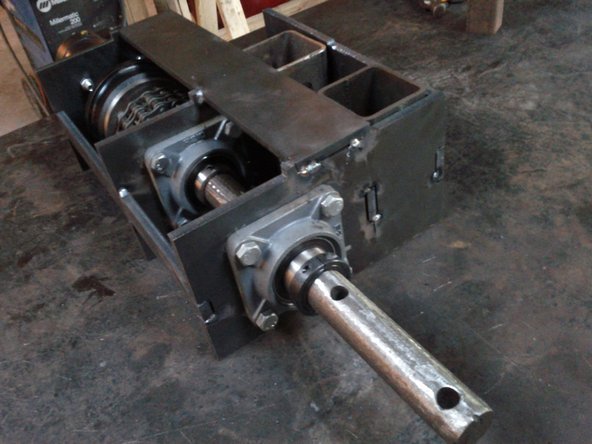

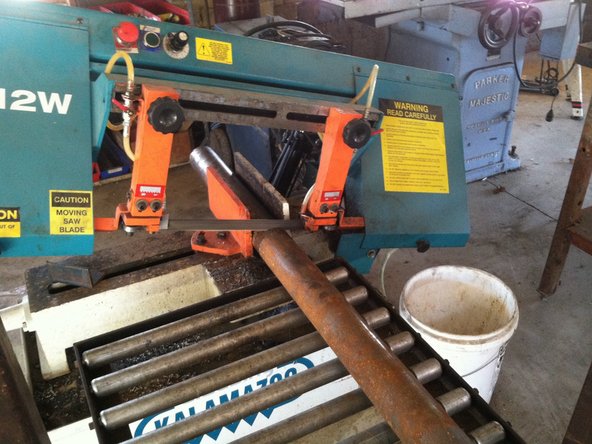

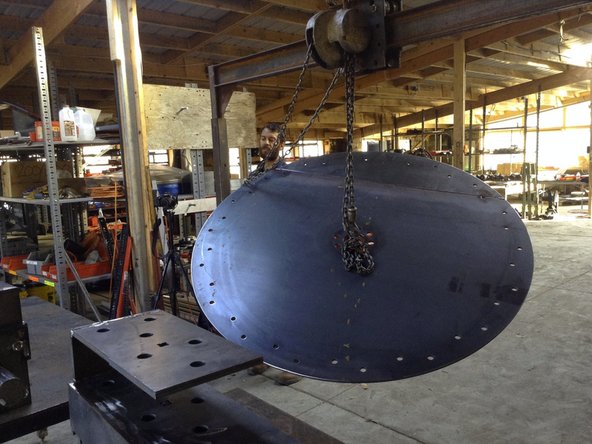

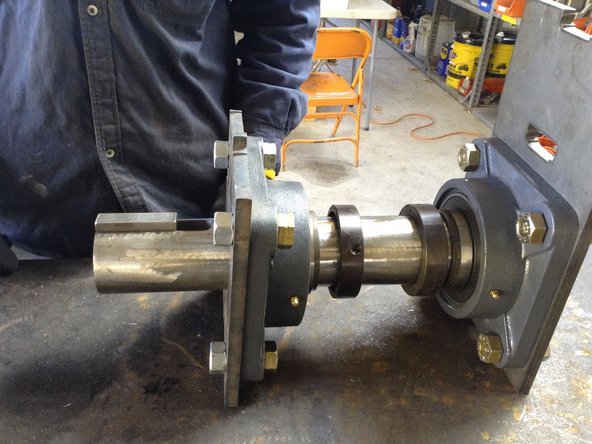

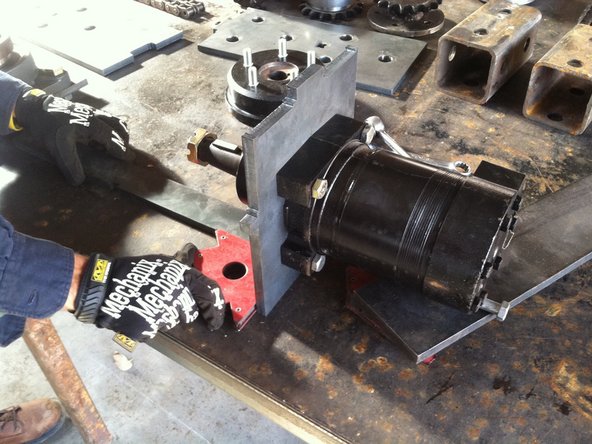

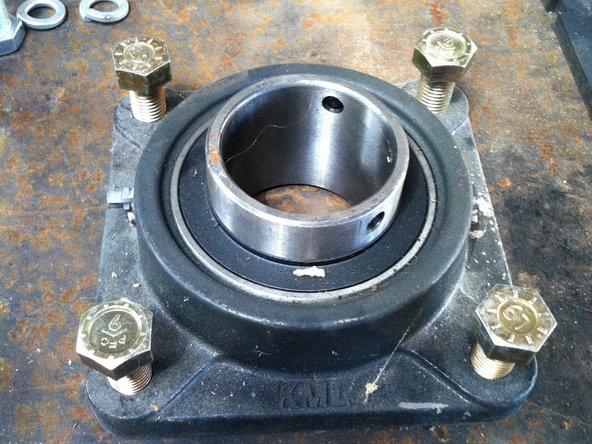

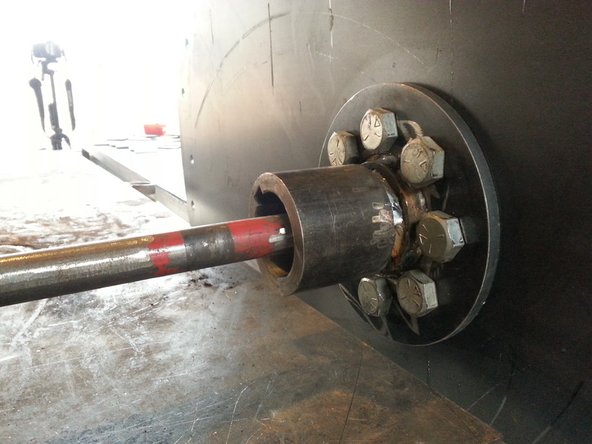

Attach bearing to "middle plate" (insert part number) as shown in image.
-
Be mindful of orientation of grease zerk relative to plate. Must remain accessible once unit is fully assembled.
-
-
-

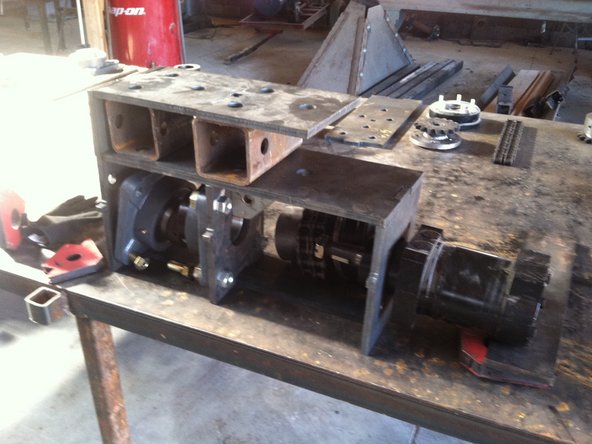

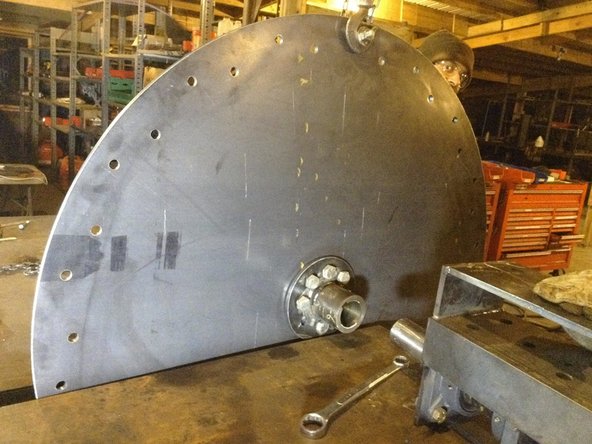

Attach bearing to "large bearing plate" (insert part number). This bearing faces inside the mount - towards the other bearing.
-
-
-

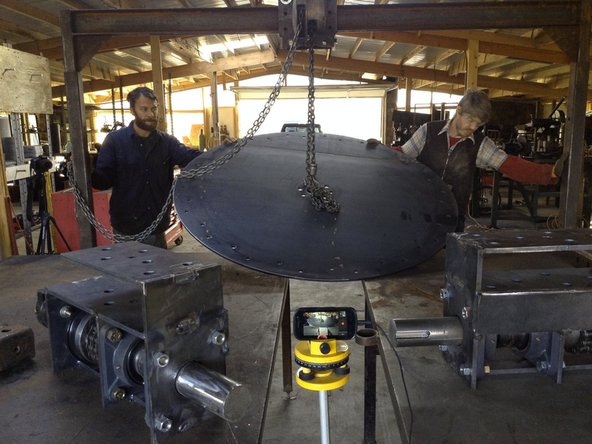

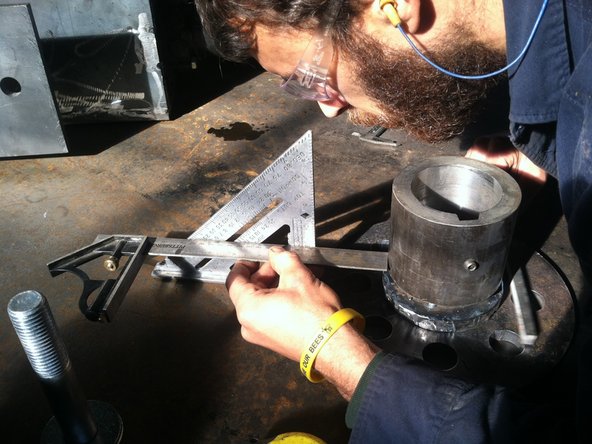

Ensure all parts are square and uniform
-
Tack weld
-

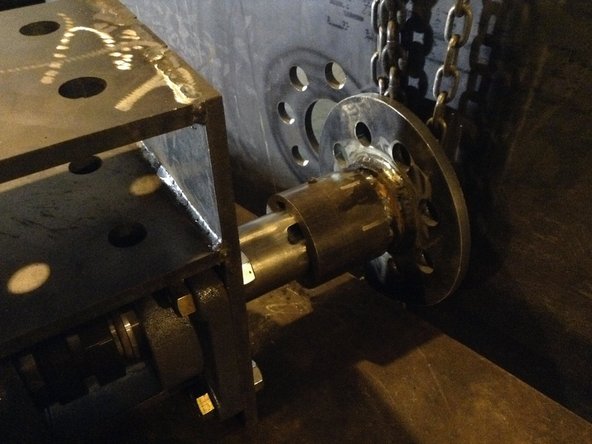

Make sure rotor turns freely without binding
-

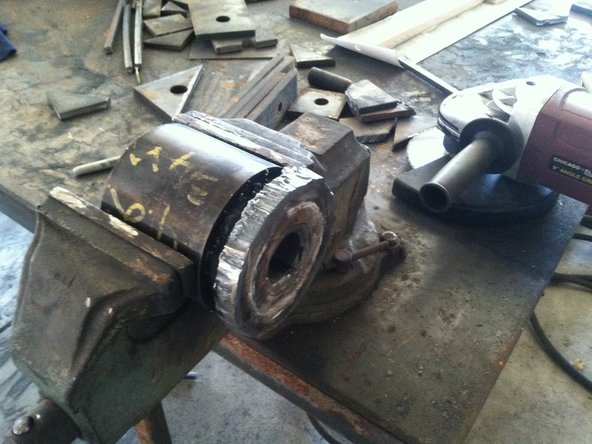

Finish welding entire unit
-
-
-

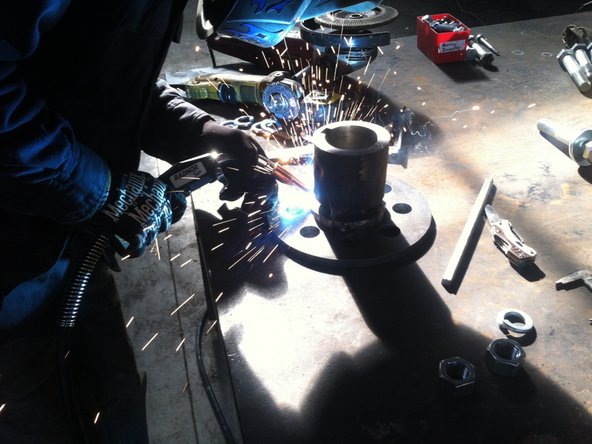

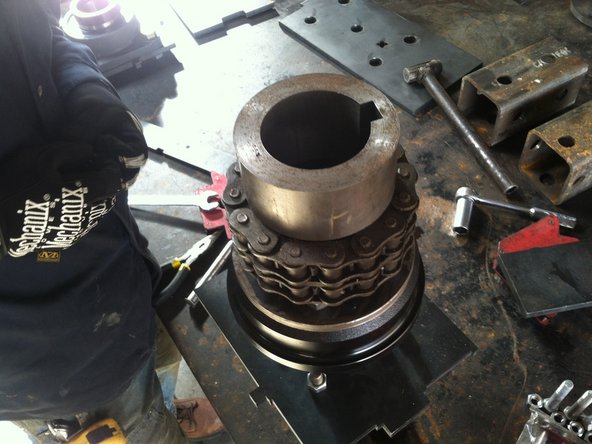

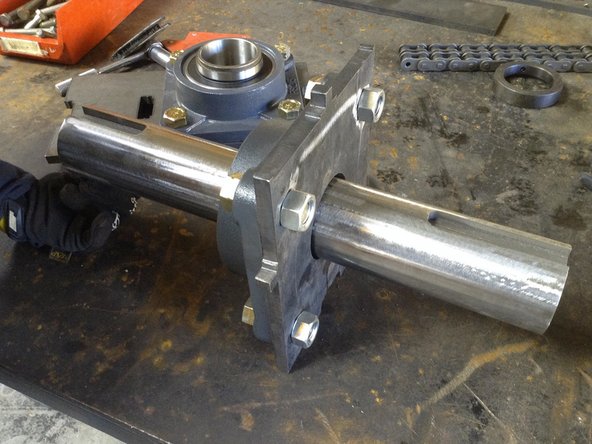

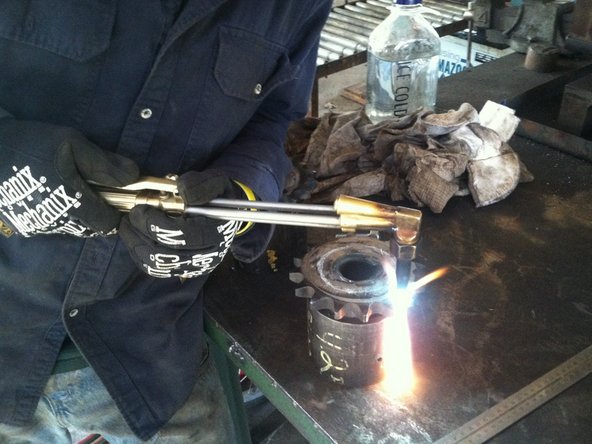

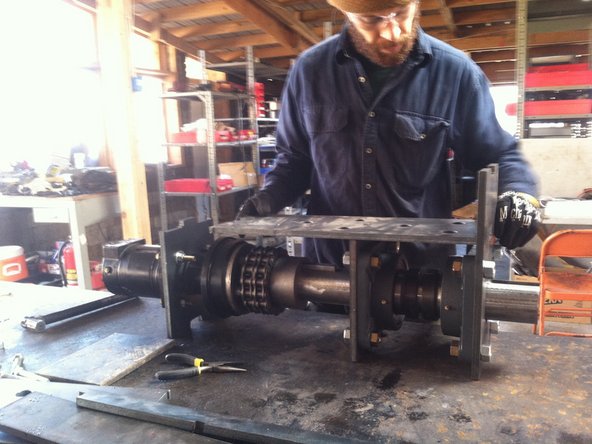

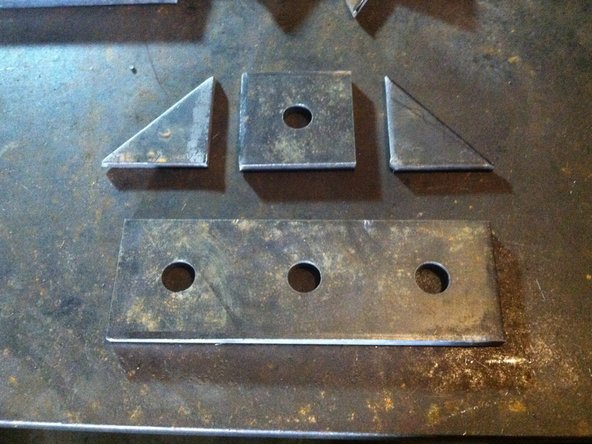

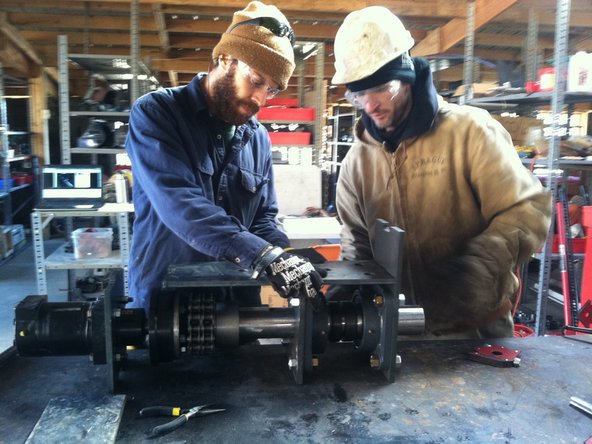

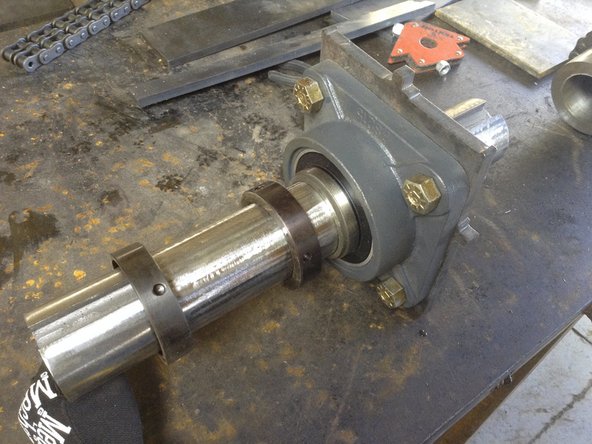

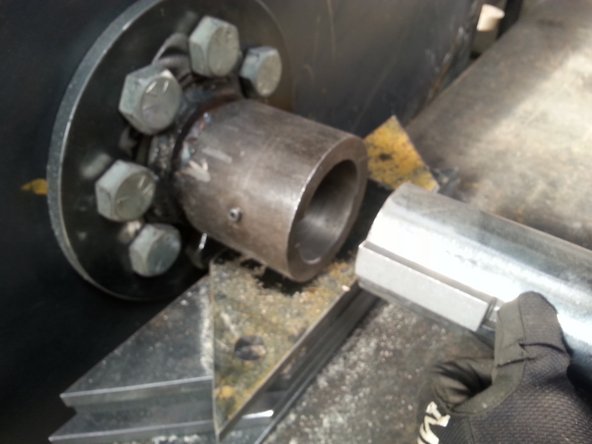

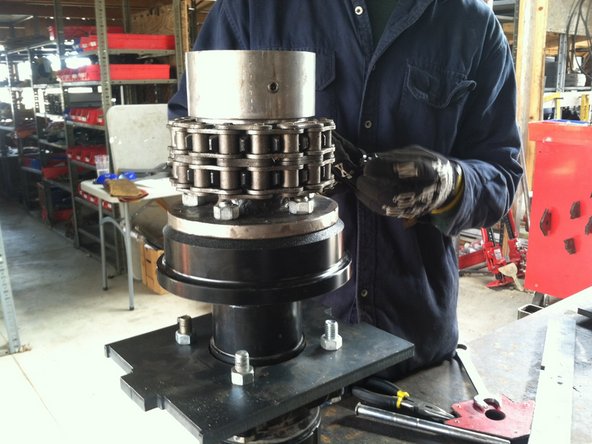

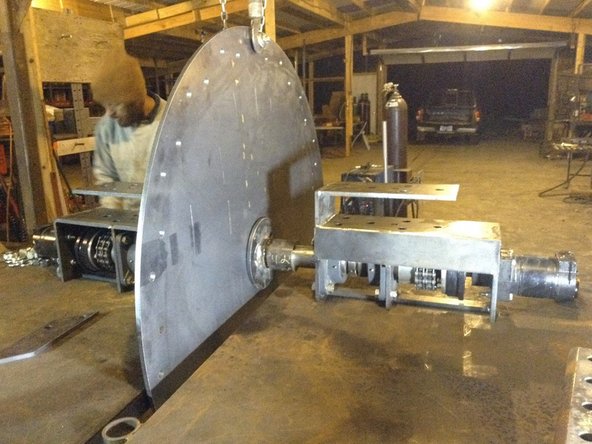

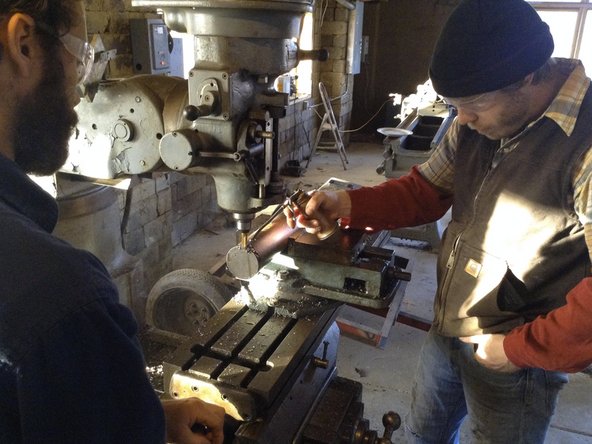

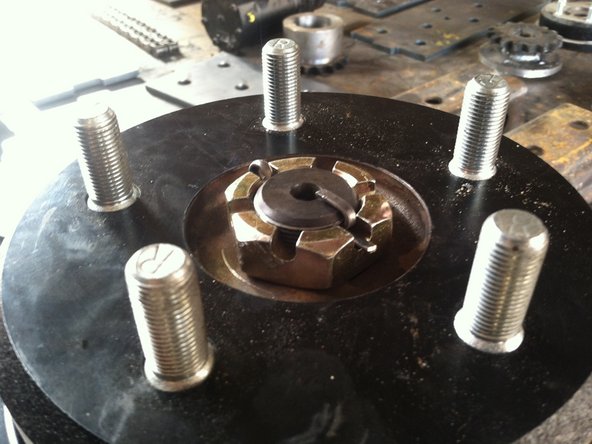

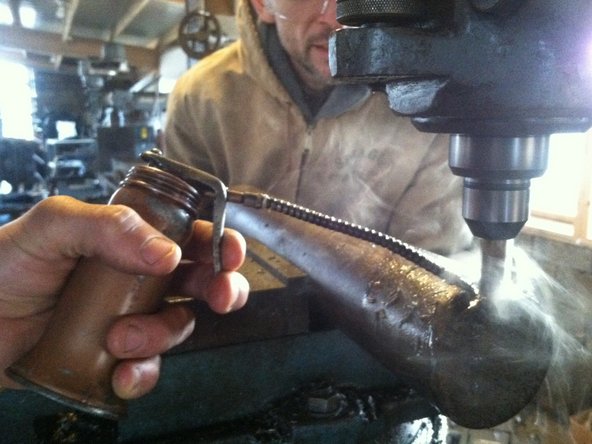

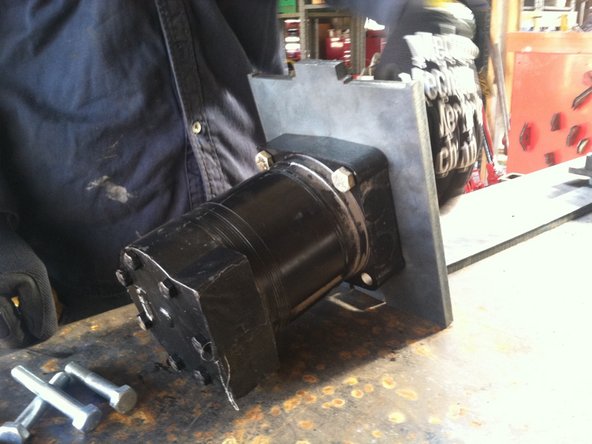

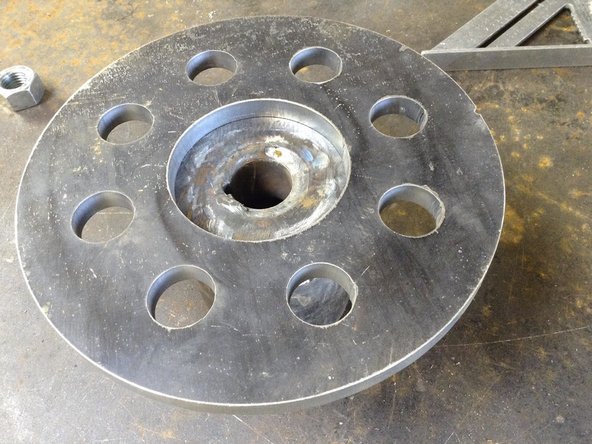

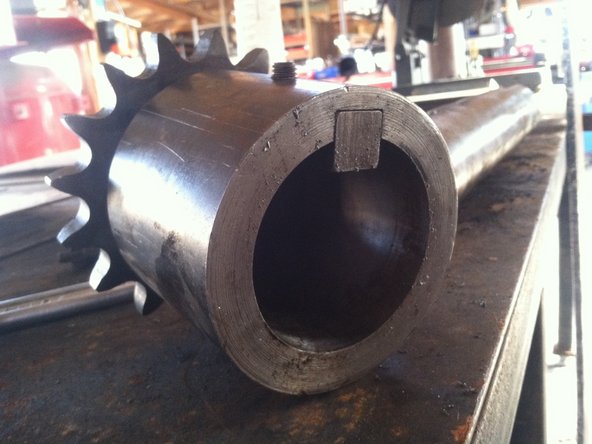

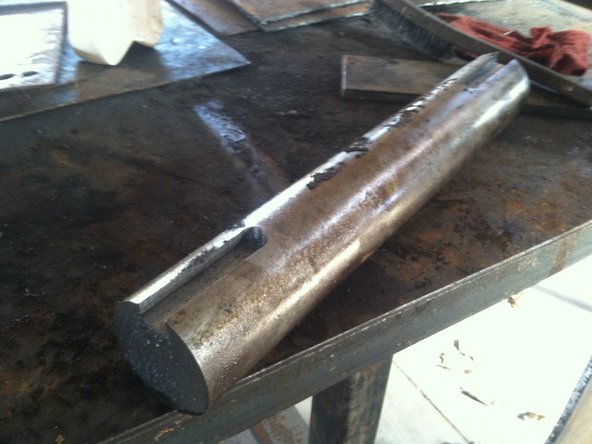

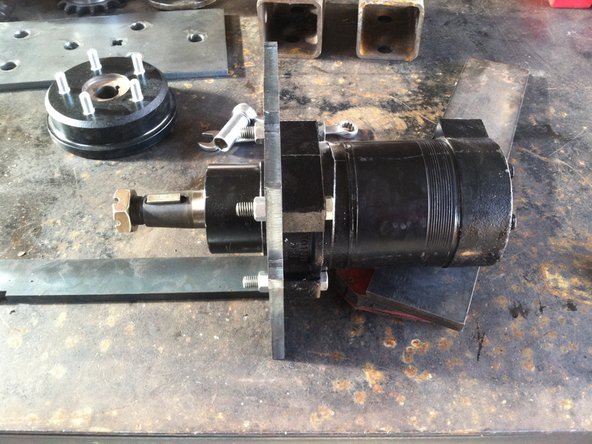

With the rotor and double chin coupler assembly put on the two bearings but place the key and the shaft first to join the shaft and the mowith the rotor and double chin coupler assembly put on the two bearings but place the key and the shaft first to join the shaft and the motor assembly.
-
-
-

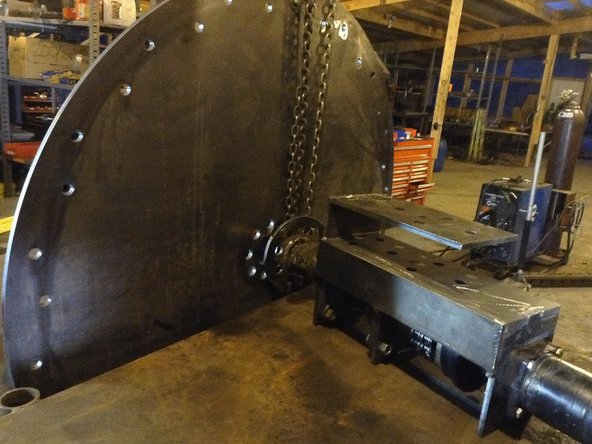

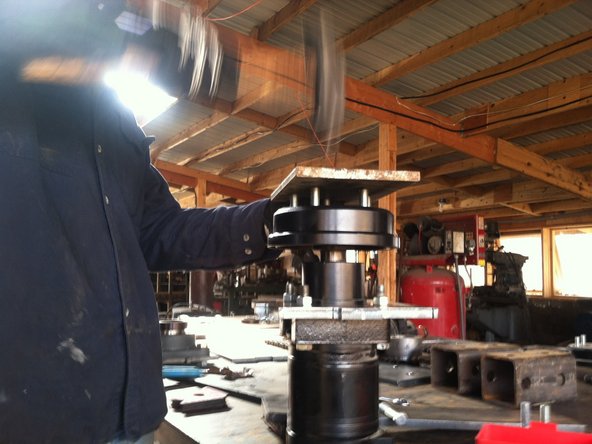

Use the top plate as a marker for punching in the shaft into the Universal Rotor Assembly - to adjust the distance of how far the have to go in
-
-
-

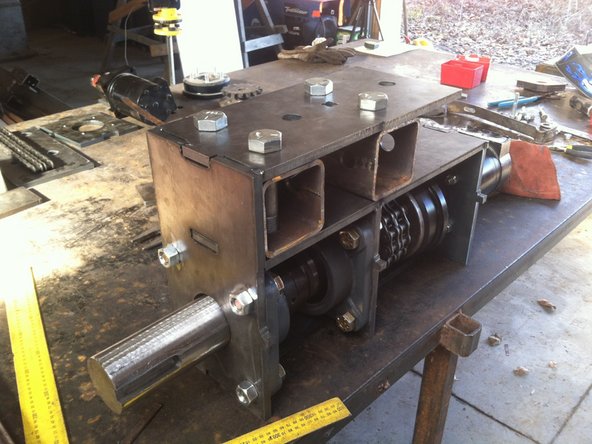

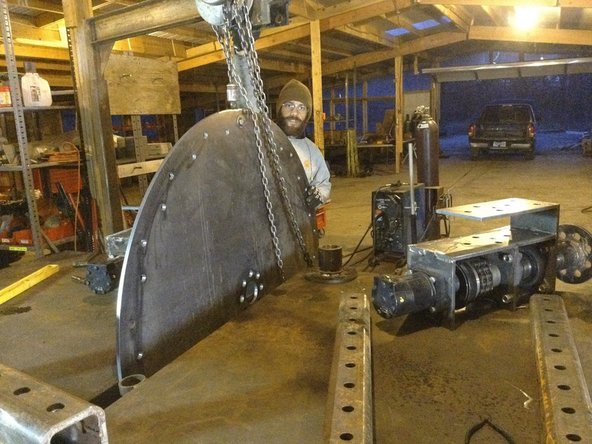

Put in the square tube spacers. Put in shims - about 1/32 by the front plate, and about 1/8" on the back shim.
-
