How to build the OSE Lasersaur Frame Table

Written By: Robert Kirk (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

8

Time Required

Suggest a time??

Sections

1

Flags

0

  1. Edit

  2. Insert spring nuts on the ends of long members

    • Insert spring nuts on the ends of long members

    Edit

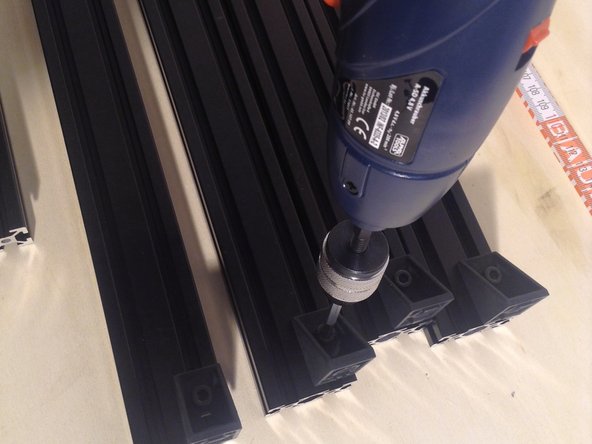

  3. Screw in angle brackets on long members

    • Screw in angle brackets on long members

    Edit

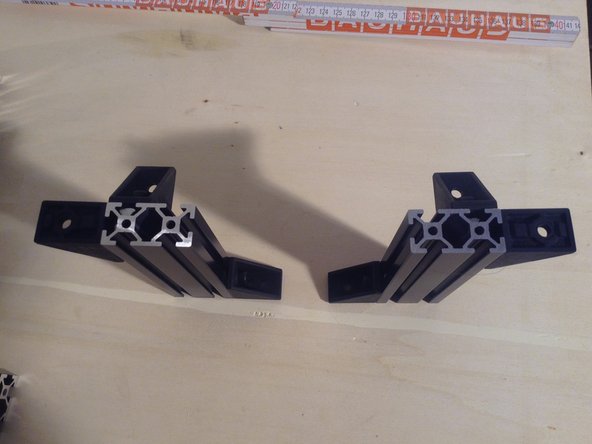

  4. Build front corner posts. They are symmetric.

    • Build front corner posts. They are symmetric.

    Edit

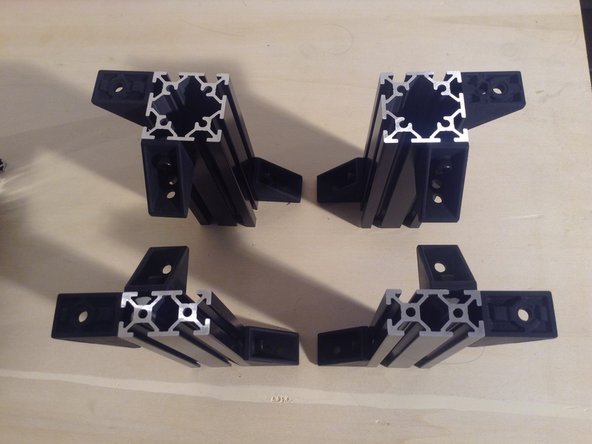

  5. Build rear corner posts, paying attention to location of brackets.

    • Build rear corner posts, paying attention to location of brackets.

    Edit

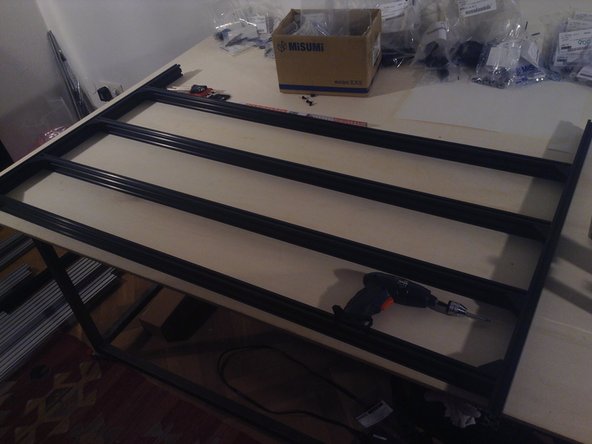

  6. Attach long members to shorter members of the frame. Make front offset 54 mm, and rear offset 194 mm to edge.

    • Attach long members to shorter members of the frame. Make front offset 54 mm, and rear offset 194 mm to edge.

    Edit

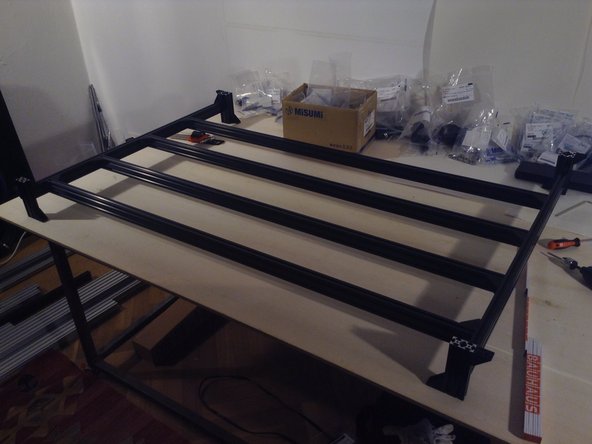

  7. Put legs on table

    • Put legs on table

    Edit

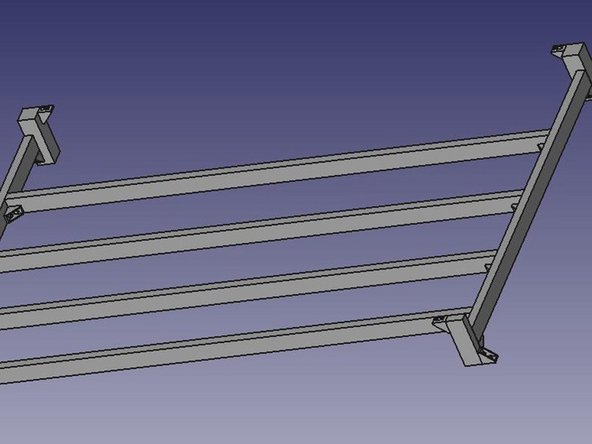

  8. Frame table done.

    • Frame table done.

    Edit
Finish Line
