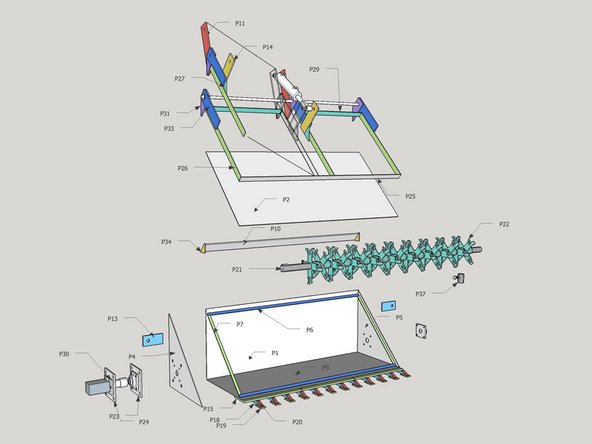

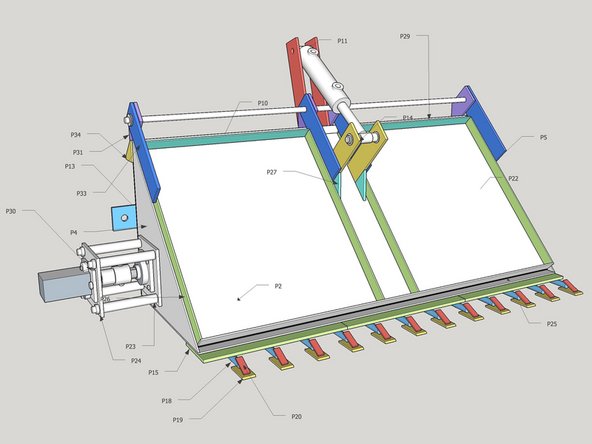

1. Exploded parts diagram Exploded parts diagram
    • Exploded parts diagram

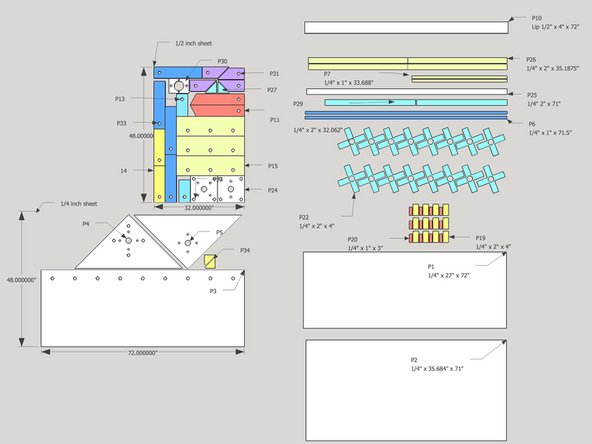

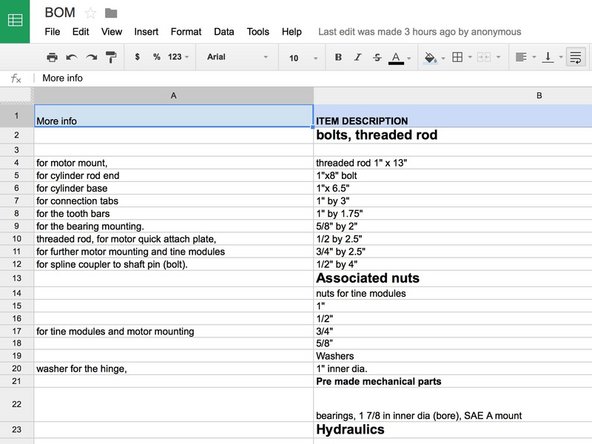

  2. BOM
  3. CAM Files for Plasma Cutting/CNC
    • CAM Files for Plasma Cutting/CNC

    • Latest DXF files on the OSE Wiki

    • Send the 2 DXF files to a CNC cutter. The smaller sheet is 32" x 48" @ 1/2" thick. The second larger sheet if 48" x 72" @ 1/4" thick. The third file can be cut from standard stock. All of these parts are produced from mild steel.

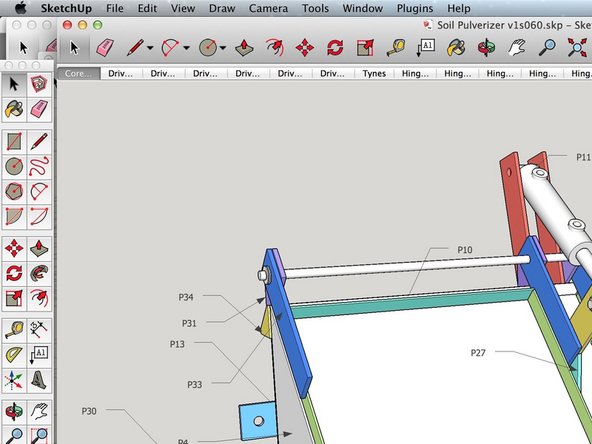

  4. CAD MODEL

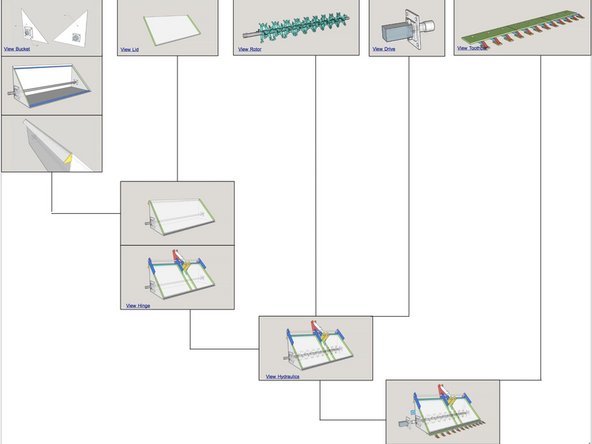

  5. Parallel workflow
    • Parallel workflow

    • Work through each of the modules designated in the workflow diagram

    • It is possible to have up to 5 groups working in parallel to produce the machine more rapidly. The google drawing contains links to each module to order module completion.

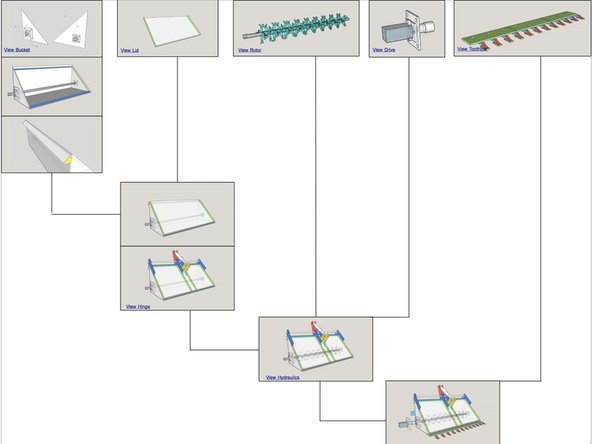

    • Fabrication Diagram
