CEB: Wide Cylinder Supports

Written By: Dozuki System
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

2

Time Required

Suggest a time??

Sections

1

Flags

1

User-Contributed Guide

User-Contributed Guide

This guide is not managed by the site's staff.

Introduction

Sketchup ModelAdditional Materials Required:* 3/4"x2" Bolts (2)* 3/4" Steel Nuts (2)* 3/4" Galvanized Nuts (2)

Tools

Parts

No parts specified.

  1. Torch the hole in the 2x2 angle as shown. Weld the angle centered on the U-channel Weld a 3/4" bolt over the hole.

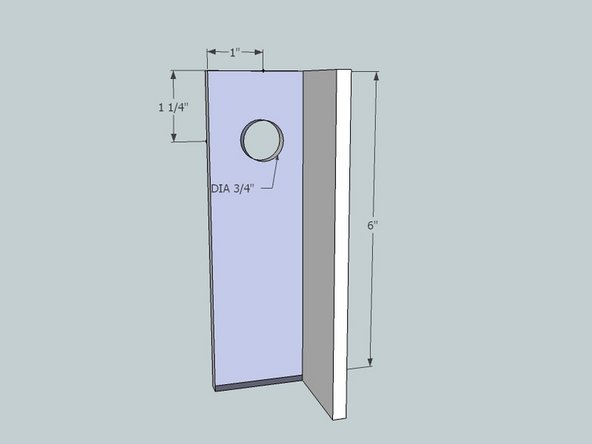

    • Torch the hole in the 2x2 angle as shown.

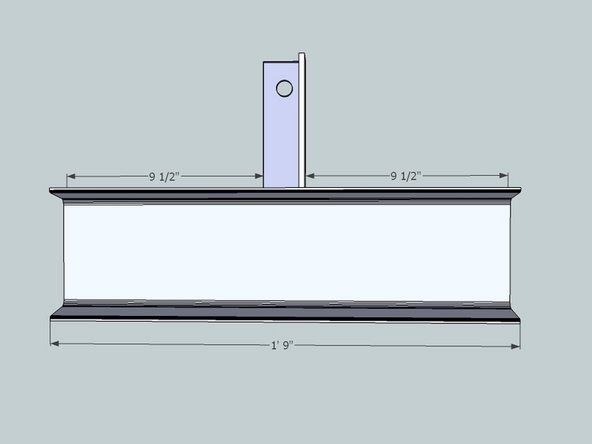

    • Weld the angle centered on the U-channel

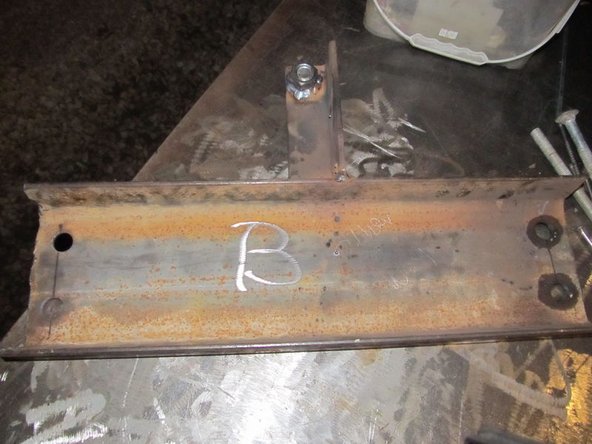

    • Weld a 3/4" bolt over the hole.

    Edit

  2. Put a galvanized nut on a 3/4"x2" bolt and thread through the welded nut on each side

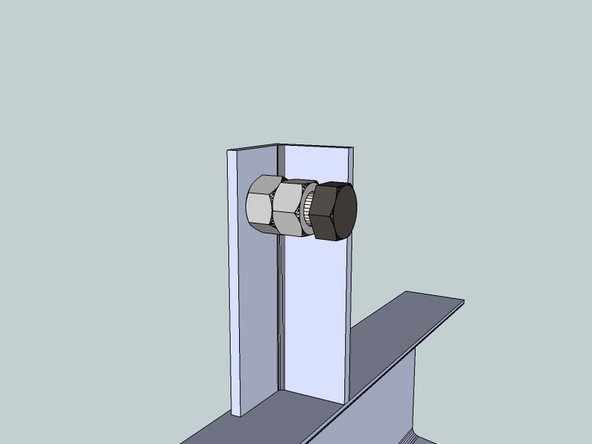

    • Put a galvanized nut on a 3/4"x2" bolt and thread through the welded nut on each side

    Edit
