Introduction

This guide explains the steps for:* Leg Holders-Model* Feet- Model* Legs- Model* Secondary Arms- Model* Primary Arms- Left Primary Arm Model, Right Primary Arm ModelAdditional Materials Required:* 3/4" Steel Nuts (14)* 3/4"x1.5" Bolts (14)

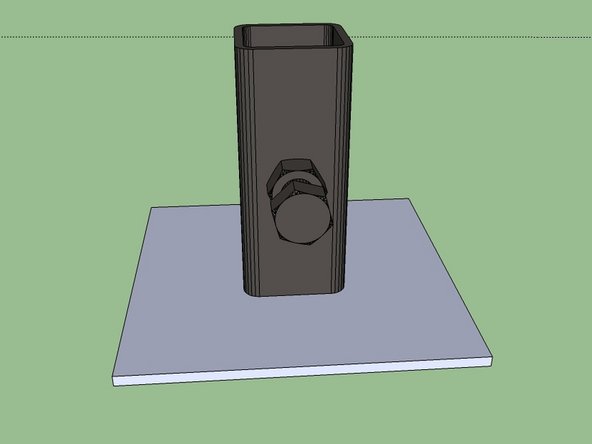

  1. You need to make 4 of these.
    • You need to make 4 of these.

    • Center a leg holder on the 1/4x8x8 plate, ensuring it is square in all directions.

    • Weld it 100% to the plate.

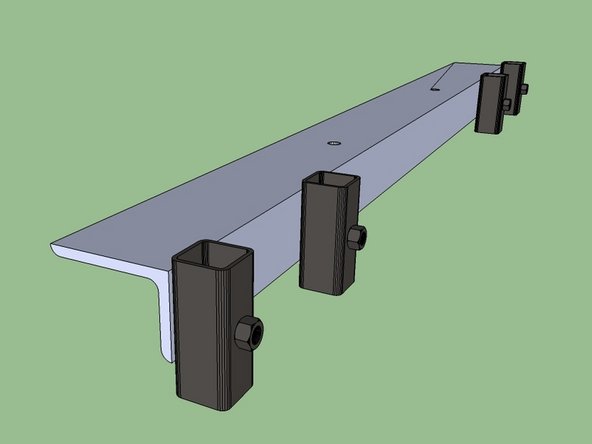

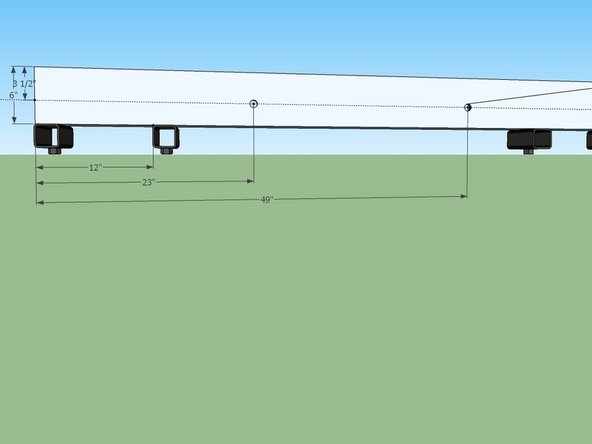

  2. You need two and they are exactly the same. Punch the 3/4" holes
    • You need two and they are exactly the same.

    • Punch the 3/4" holes

    • Place the leg holders in their proper locations.

    • They go on the 4" side of the angle.

    • Make sure they are square with the angle iron and centered vertically.

    • Weld them to the angle.

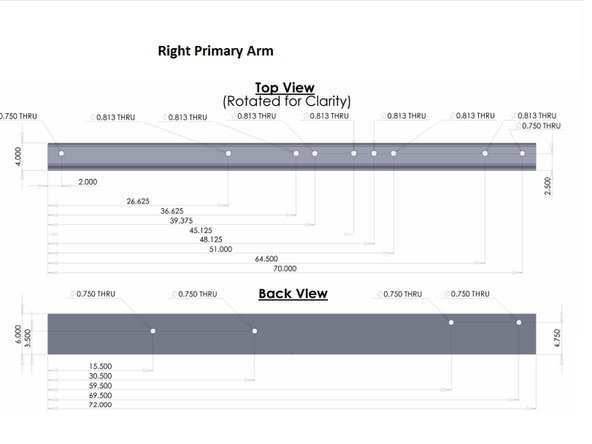

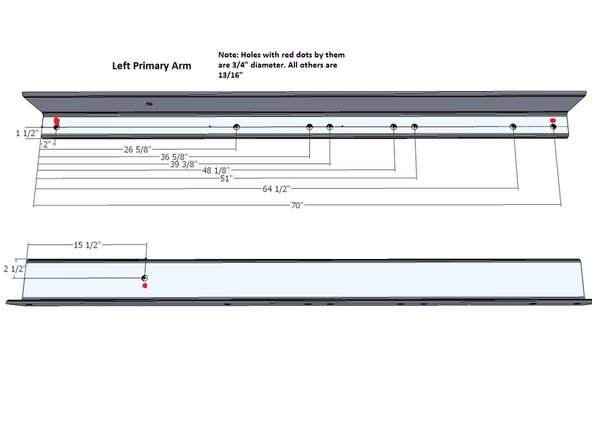

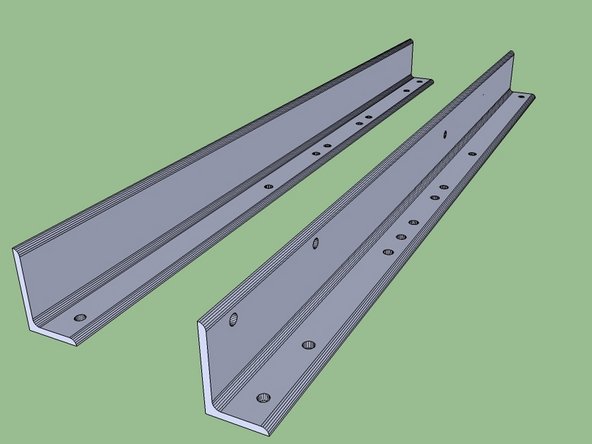

  3. Mark all holes Punch all holes. Label each arm with either "right" or "left"
    • Mark all holes

    • Punch all holes.

    • Label each arm with either "right" or "left"

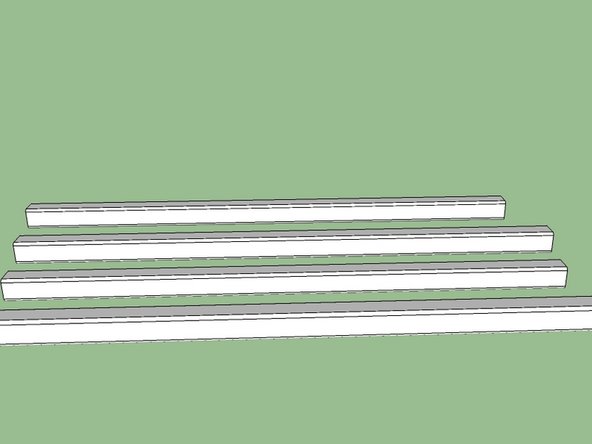

  4. There are no steps for the legs, just cut them.
    • There are no steps for the legs, just cut them.
