Introduction

Additional Materials Required:* Thread tape* Shaker motor Buy* 1/2" NPT Needle Valve (1) Buy* 1/4"x12" NPTM Hydraulic hose (1)Buy* 1/2"x36" NPTM Hydraulic hoses (2)* SAE 4M to 1/4" NPTF Swivel (1)Buy* 1/2" NPT Hex Nipple (2) Buy* 1/2" NPTF Tee (1) Buy* 1/2" NPTM to 1/4" NPTF bushing Buy

Tools

Parts

No parts specified.

    • Thread tape is necessary between each connection unless otherwise stated.

    • Always wrap thread tape clockwise when facing the threaded portion.

    • Always keep the end caps on hoses and fittings until you need to take them off. They need to stay protected inside.

  1. Attach all of the fittings and the 2 hoses  to the Tee, except the small swivel. Tighten the tee assembly into the correct port (see the photo)

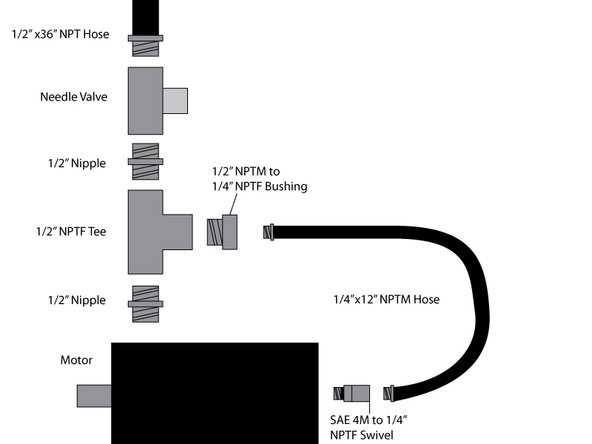

    • Attach all of the fittings and the 2 hoses to the Tee, except the small swivel.

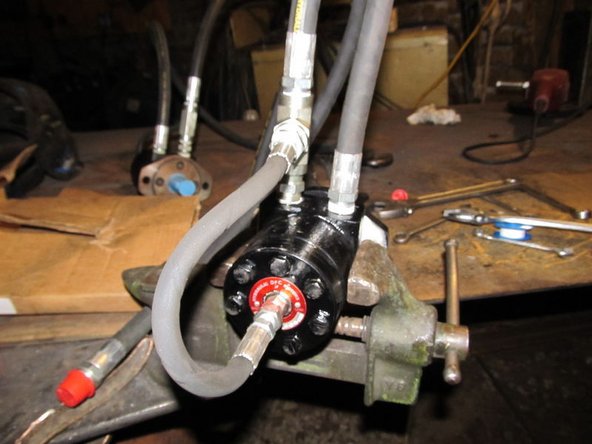

    • Tighten the tee assembly into the correct port (see the photo)

    • Install the swivel and tighten the small hose to it.

    • The swivel doesn't need thread tape.

    • Put the other 36" hose into the remaining port on the motor.
