Sketchup ModelAdditional Materials Required:* 3/4" Galvanized Nuts (3)* 3/4" Steel Nuts (2)

Tools

Parts

No parts required.

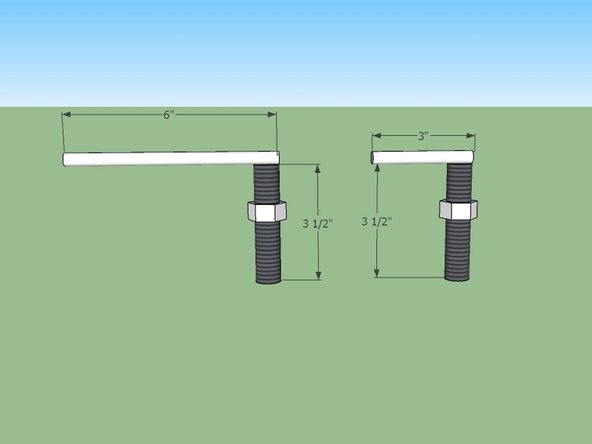

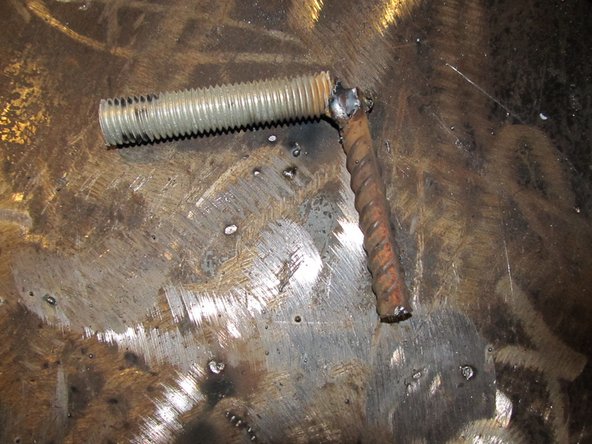

  1. One is for the main frame, and one goes in the primary arms. Weld the rebar to the threaded rod at a right angle.
    • One is for the main frame, and one goes in the primary arms.

    • Weld the rebar to the threaded rod at a right angle.

    • Protect the threads on the threaded rod by welding. (A small pipe works well)

    • Thread a nut onto it.

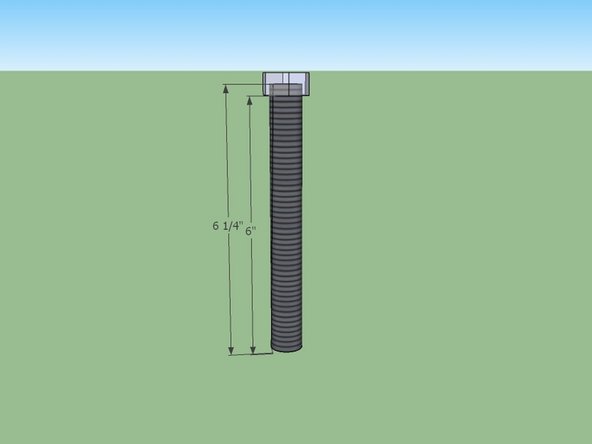

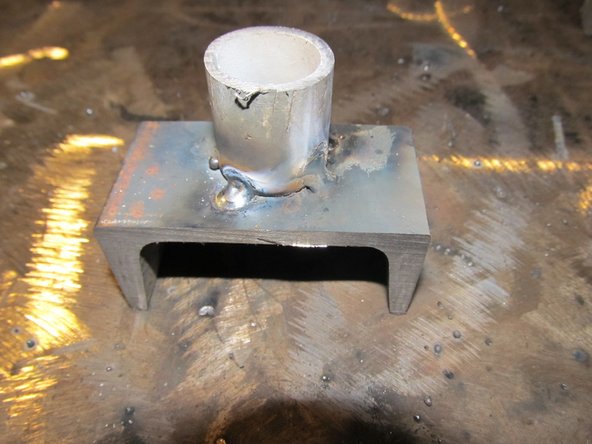

  2. Weld the 1" pipe to the 3" U-channel, in the center. 4-8 good tacks is sufficient. Make (2) 6" long 3/4" bolts, by using a nut and 6.25" of threaded rod. See Making Bolts. Make (2) 6" long 3/4" bolts, by using a nut and 6.25" of threaded rod. See Making Bolts.
    • Weld the 1" pipe to the 3" U-channel, in the center. 4-8 good tacks is sufficient.

    • Make (2) 6" long 3/4" bolts, by using a nut and 6.25" of threaded rod. See Making Bolts.

  3. Weld the flatbar to the 1.25" piece of threaded rod. Protect the threads.

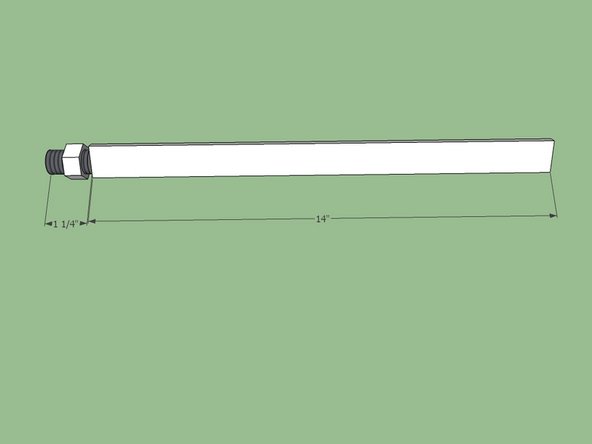

    • Weld the flatbar to the 1.25" piece of threaded rod.

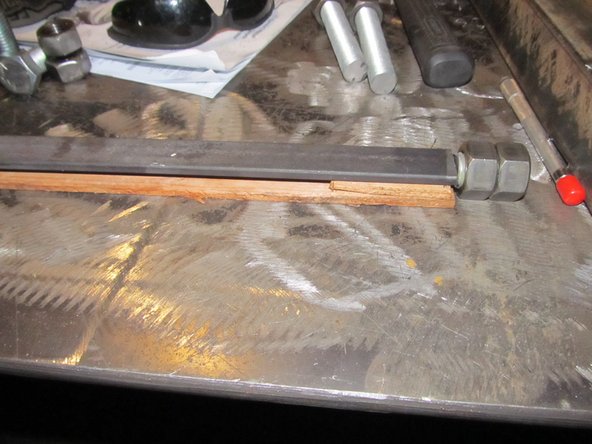

    • Protect the threads.

    • Make sure they are perfectly paralell!

    • Thread a nut onto the threaded rod.
